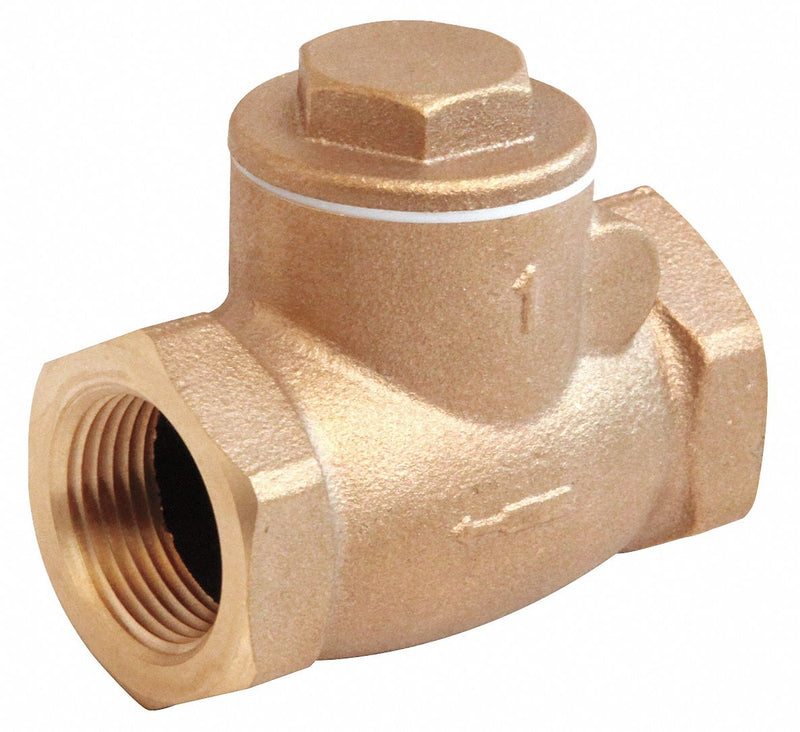

Allows flow in one direction and helps prevent fluid backflow this swing check valve is suitable for use in plumbing and heating applications. Model can be mounted vertically or horizontally to ease installation.
| Item - Check Valves | Check Valve |
| Flow Design | Single |
| Mechanism and Body Design | Inline Swing |
| Body Material - Valves | Bronze |
| Pipe or Tube Size - Check Valves | 2 in |
| Connection Type - Check Valves | FNPT x FNPT |
| Cracking Pressure - Check Valves | 0.75 to 1 psi |
| Mounting Orientation - Check Valves | Horizontal, Vertical |
| Seal Material - Check Valves | Bronze |
| Max. Temp. - Valves | 406 Degrees F |
| Min. Temp. - Valves | -20 Degrees F |
| Max. Water Pressure - Valves | 200 psi |
| Max. Steam Pressure - Valves | 125 psi WSP |
| Seat Material - Check Valves | Bronze |
| Flow - Valves | 120 gpm |
| Full Flow - Valves | Yes |
| Application - Valves | General Purpose |
| Length | 4 1/2 in |
| Cap to Inlet Center | 2 11/16 in |
| Hex Size | 2 7/8 in |
| Standards | ASTM B62, MSS-SP-80 |
