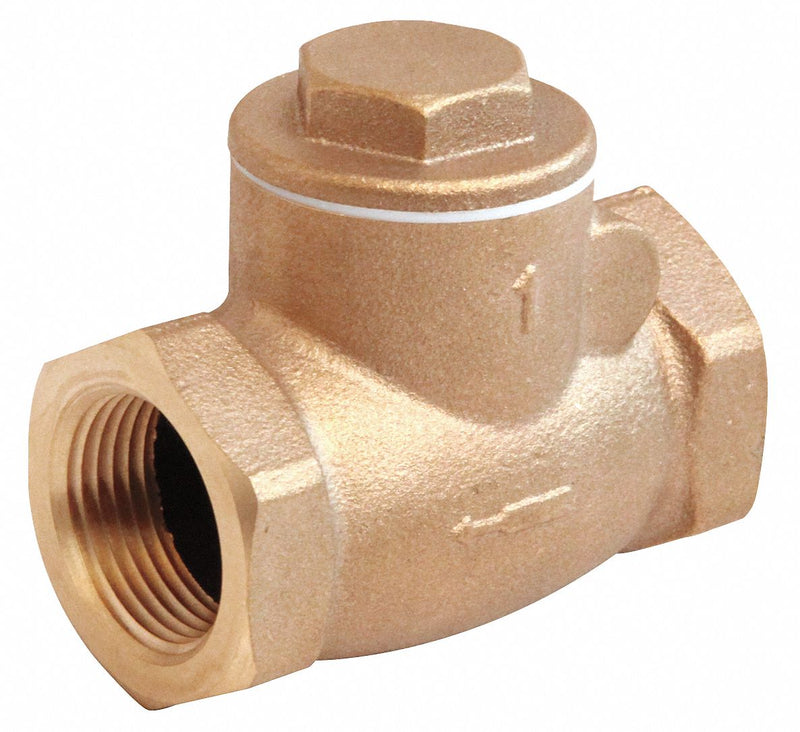

Top Brand Check Valve, 3/4 in, Single, Inline Swing, Bronze, FNPT x FNPT - 10F302

Top BrandSKU: C1911135
MPN : 10F302
Weight : 1.0 lb

filler

Price:
$31.52 $50.84

Availability : Usually Ships in 3 Business Days

Allows flow in one direction and helps prevent fluid backflow this MILWAUKEE VALVE swing check valve is suitable for use in plumbing and heating applications. Model can be mounted vertically or horizontally to ease installation.

Item - Check ValvesCheck Valve
Flow DesignSingle
Mechanism and Body DesignInline Swing
Body Material - ValvesBronze
Pipe or Tube Size - Check Valves3/4 in
Connection Type - Check ValvesFNPT x FNPT
Cracking Pressure - Check Valves0.75 to 1 psi
Mounting Orientation - Check ValvesHorizontal, Vertical
Seal Material - Check ValvesPTFE
Max. Temp. - Valves406 Degrees F
Min. Temp. - Valves-20 Degrees F
Max. Water Pressure - Valves300 psi
Max. Steam Pressure - Valves150 psi WSP
Seat Material - Check ValvesBronze
Flow - Valves20 gpm
Full Flow - ValvesYes
Application - ValvesGeneral Purpose
Length2 17/32 in
Cap to Inlet Center1 21/32 in
Hex Size1 3/8 in
StandardsASTM B62, MSS-SP-80
