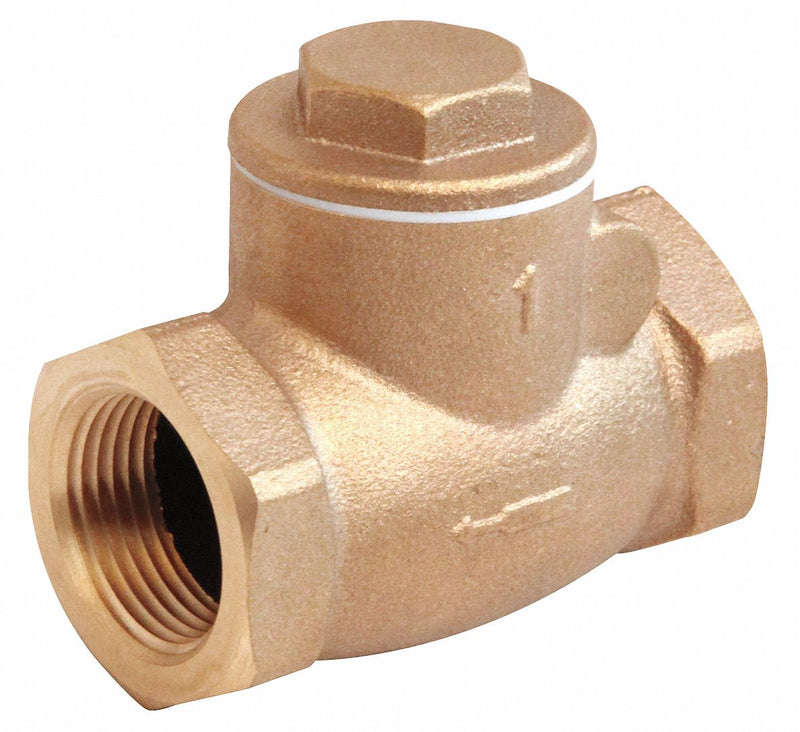

Top Brand Check Valve, 3 in, Single, Inline Swing, Bronze, FNPT x FNPT - 10F297

Top BrandSKU: C1911131
MPN : 10F297
Weight : 11.15 lb
filler

Price:
$507.65 $619.09

Availability : Usually Ships in 1-3 Business Days

Allows flow in one direction and helps prevent fluid backflow this swing check valve is suitable for use in plumbing and heating applications. Model can be mounted vertically or horizontally to ease installation.

Item - Check ValvesCheck Valve
Flow DesignSingle
Mechanism and Body DesignInline Swing
Body Material - ValvesBronze
Pipe or Tube Size - Check Valves3 in
Connection Type - Check ValvesFNPT x FNPT
Cracking Pressure - Check Valves0.75 to 1 psi
Mounting Orientation - Check ValvesHorizontal, Vertical
Seal Material - Check ValvesBronze
Max. Temp. - Valves406 Degrees F
Min. Temp. - Valves-20 Degrees F
Max. Water Pressure - Valves200 psi
Max. Steam Pressure - Valves125 psi WSP
Seat Material - Check ValvesBronze
Flow - Valves170 gpm
Full Flow - ValvesYes
Application - ValvesGeneral Purpose
Length6 7/16 in
Cap to Inlet Center3 15/16 in
Hex Size4 1/8 in
StandardsASTM B62, MSS-SP-80
