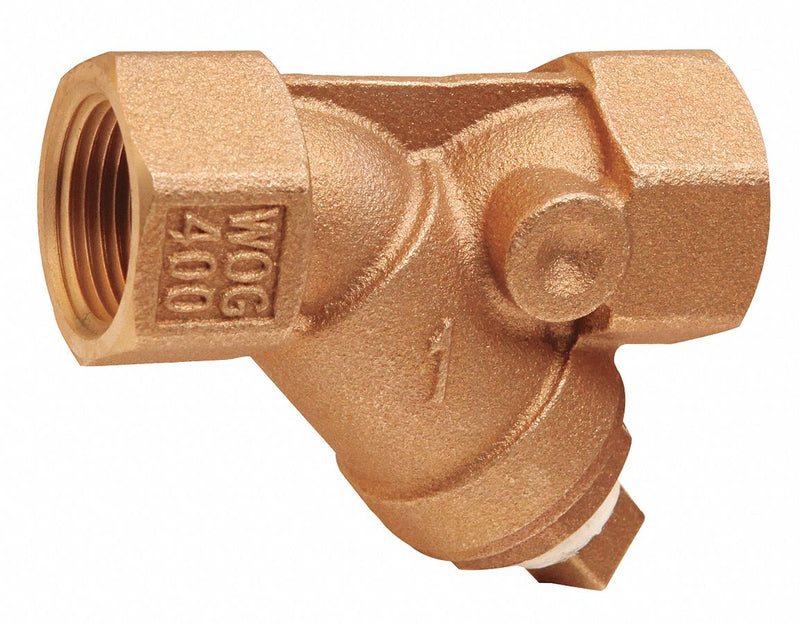

Y Strainer; Pipe Size: 1 in; Connection Type: FNPT x FNPT; Housing Material: Bronze; Max. Pressure: 125 psi @ 353 Degrees F, 400 psi @ 210 Degrees F; Length: 1 7/10 in; Height: 2 1/8 in; Width: 3 3/4 in; Screen Area: 1.09 sq in; Screen Material: Stainless Steel; Mesh: 20; Gasket Material: PTFE; Blow-off Port: 1 in; Class: 300; Standards: ASTM B584
| Item | Y Strainer |
| Pipe Size | 1 in |
| Connection Type | FNPT x FNPT |
| Housing Material | Bronze |
| Max. Pressure | 125 psi @ 353 Degrees F, 400 psi @ 210 Degrees F |
| Length | 1 7/10 in |
| Height | 2 1/8 in |
| Width | 3 3/4 in |
| Screen Area | 1.09 sq in |
| Screen Material | Stainless Steel |
| Mesh | 20 |
| Gasket Material | PTFE |
| Blow-off Port | 1 in |
| Class | 300 |
| Standards | ASTM B584 |
