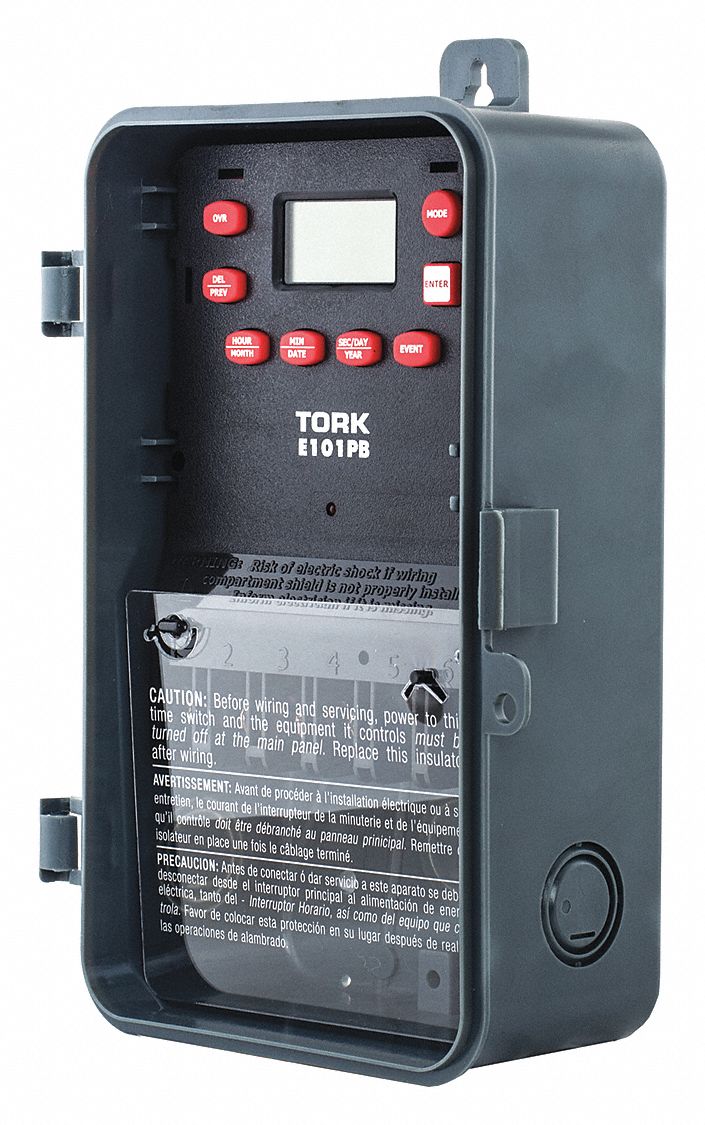

| Item | Electronic Timer |
| Operation Mode | 24 hr |
| Number of Channels | 1 |
| Contact Form | SPST |
| Voltage | 120V AC |
| Amps | 30 A |
| HP @ 120V | 1 |
| HP @ 240V | 2 |
| Events Available - Electronic Timer | 20 |
| Available Actions - Electronic Timer | On/Off |
| Event Allocation - Electronic Timer | 1 On/Off Action = 1 Event |
| Enclosure | Plastic |
| Mounting | Surface |
| Number of Poles | 1 |
| Min. Time Setting | 1 min |
| Max. Time Setting | 24 hr |
| NEMA Rating | 1 |
| Color | Gray |
| Backup Device | Capacitor |
| Backup Time | 100 hr |
| Operating Temp. | 40 Degrees to 149 Degrees F |
| Height | 8 5/16 in |
| Depth | 3 1/16 in |
| Width | 5 1/16 in |
| Description/Special Features | Capacitor for Permanent Schedule Retention, Locking Hasp |
| Standards | California Title 24 Compliant, cULus |
