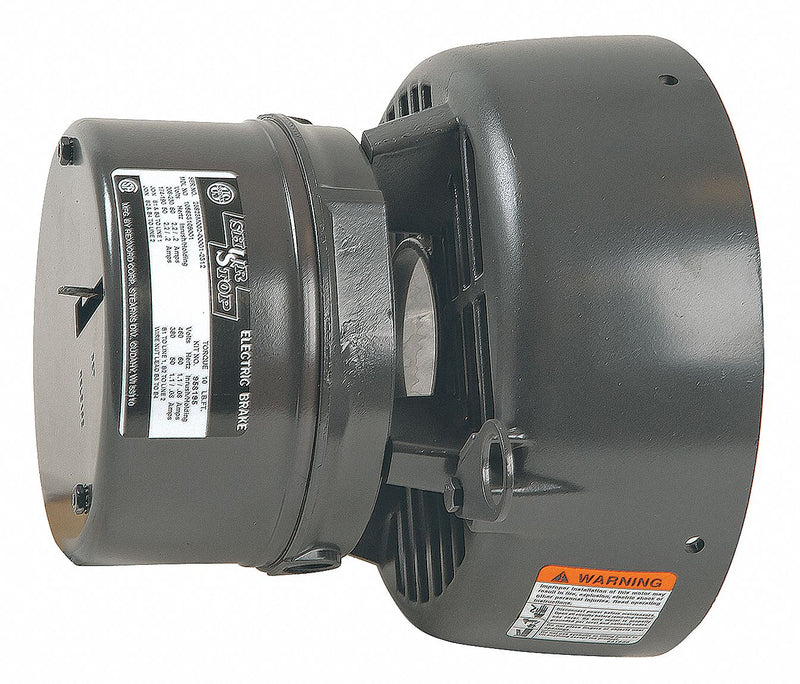

US Motors Nidec Rear End Mounting,3 Phase Motor Brake Kit,10 ft-lb Static Torque,230/460 Voltage - 958195

US MotorsSKU: C1549392
MPN : 958195
Weight : 13.6 lb


$1,558.10 $1,900.12

Availability : Usually Ships in 1-3 Business Days

Motor Brake Kits,IP23, rolled steel enclosure 1 to 30 HP 1200 to 3600 rpm 3-phase, 230/460V,Kit easily installs on back of motor to convert from unit-mount to brake-mount use. Kit size is determined by NEMA frame and ft.-lb. of static torque required for the application. Include mounting hardware.

ItemMotor Brake Kit
Type182T, 182TC, 182TCH, 184T, 184TC, 184TCH
Static Torque10 ft-lb
For Use WithUSEM Unimount Motors
RPM Range1200 to 3600
Holding Amps0.08
Inrush Amps1.1
MountingRear End
Max. Ambient Temperature40 Degrees C
Enclosure MaterialRolled Steel
Wire TerminationFlying Leads
Diameter8 3/4 in
Overall Length4.75-30V DC
ODE Shaft Diameter-10 Degrees to 45 Degrees C
Manufacturers Warranty Length1 yr
Mfr. Stock No.958195
IncludesMounting Hardware
