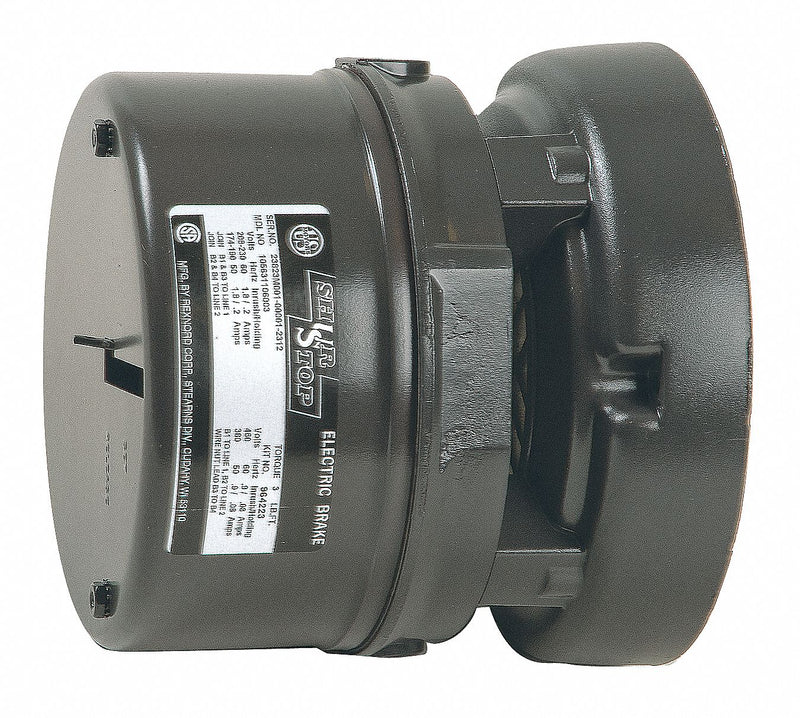

US Motors Nidec Rear End Mounting,3 Phase Motor Brake Kit,6 ft-lb Static Torque,230/460 Voltage - 964225

US MotorsSKU: C1549390
MPN : 964225
Weight : 8.65 lb

filler

Price:
$1,260.82 $1,537.59

Availability : Usually Ships in 1-3 Business Days

Motor Brake Kits,IP23, rolled steel enclosure 1 to 30 HP 1200 to 3600 rpm 3-phase, 230/460V,Kit easily installs on back of motor to convert from unit-mount to brake-mount use. Kit size is determined by NEMA frame and ft.-lb. of static torque required for the application. Include mounting hardware.

ItemMotor Brake Kit
Type56, 143T, 143TC, 145T, 145TC
Static Torque6 ft-lb
For Use WithUSEM Unimount Motors
RPM Range1200 to 3600
Voltage230/460
Hz60/50
Phase3
Holding Amps0.08
Inrush Amps1.1
MountingRear End
Max. Ambient Temperature40 Degrees C
EnclosureIP23
Enclosure MaterialRolled Steel
Wire TerminationFlying Leads
HoldsY
Diameter6 9/16 in
Overall Length12-24V DC
ODE Shaft Diameter-30 Degrees to 60 Degrees C
Manufacturers Warranty Length1 yr
Mfr. Stock No.964225
IncludesMounting Hardware
