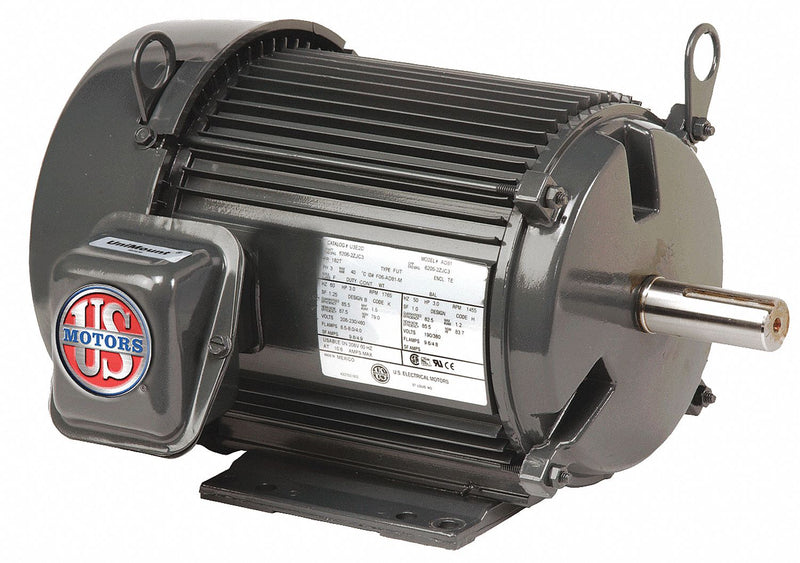

US Motors Nidec 25 HP, General Purpose Motor, 3-Phase, 3600 Nameplate RPM, 208-230/460 Voltage, 284T Frame - U25P1D

US MotorsSKU: C1549364
MPN : U25P1D
Weight : 286.0 lb

filler

Price:
$2,482.14 $3,027.00

Availability : Usually Ships in 1-3 Business Days

Featuring an optimized slot design and low-loss stator laminating for greater efficiency, this inverter-rated motor offers high temperature pulse endurance performance and superior mechanical shear stability. The painted epoxy finish resists corrosion from saltwater.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP25
Nameplate RPM3600
Frame284T
Voltage208-230/460
Hz60/50
Phase3
Full Load Amps65-57/28.4
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal or Vertical Shaft Down
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.25
Motor BearingsBall
Motor Frame MaterialCast Aluminum
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.1 7/8 in
Shaft Length4 5/8 in
Length Less Shaft23 11/16 in
Overall Length28 1/16 in
Motor Shaft DesignKeyed
StandardsCE, CSA, UL
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency91.7 %
CC NumberCC030A
Manufacturers Warranty Length2 yr
Green Certification or Other RecognitionNEMA Premium(R) Rated
