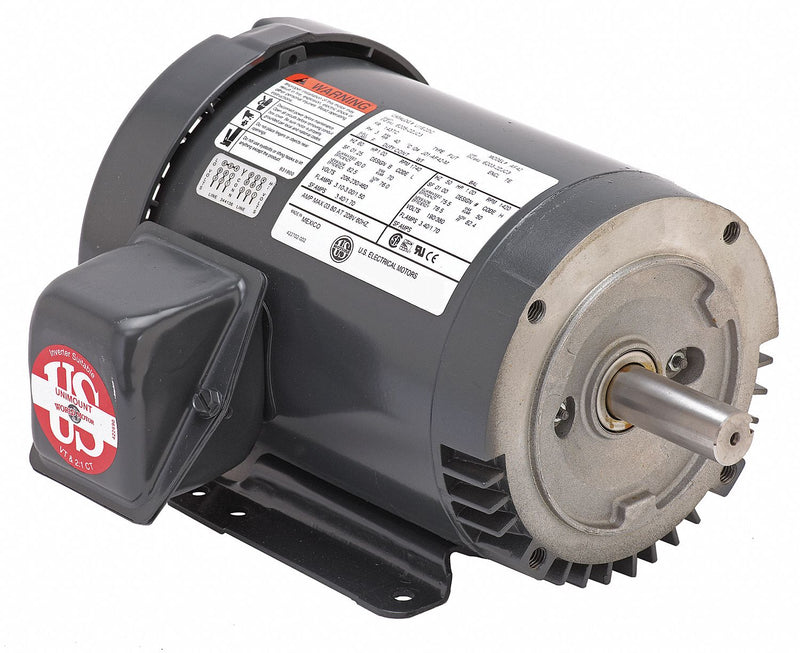

Unimount 3-Phase NEMA Premium Motors,Enclosure: totally enclosed fan-cooled Service factor: 1.25 Bearings: ball Thermal protection: none Insulation: Class F Inverter rated Max. ambient: 40C Rotation: CW/CCW Warranty: 2-yr.,Feature optimized slot design and low-loss stator laminating for greater efficiency. High temperature pulse endurance performance and superior mechanical shear stability. Steel frame. 60/50 Hz. Painted epoxy finish resists corrosion from saltwater.
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 1 |
| Nameplate RPM | 1200 |
| Frame | 145TC |
| Voltage | 208-230/460 |
| Hz | 60/50 |
| Phase | 3 |
| Full Load Amps | 3.6-3.5/1.8 |
| No. of Speeds | 1 |
| Motor Mounting Type | Face/Base |
| Motor Mounting Position | Horizontal or Vertical Shaft Down |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1.25 |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 1/4 in |
| Length Less Shaft | 10 27/32 in |
| Overall Length | 13 1/8 in |
| Motor Shaft Design | Keyed |
| Standards | CE, CSA, UL |
| Duty | Continuous |
| Motor Efficiency Group | NEMA Premium Efficient |
| Nominal Efficiency | 82.5 % |
| CC Number | CC030A |
| Manufacturers Warranty Length | 2 yr |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
