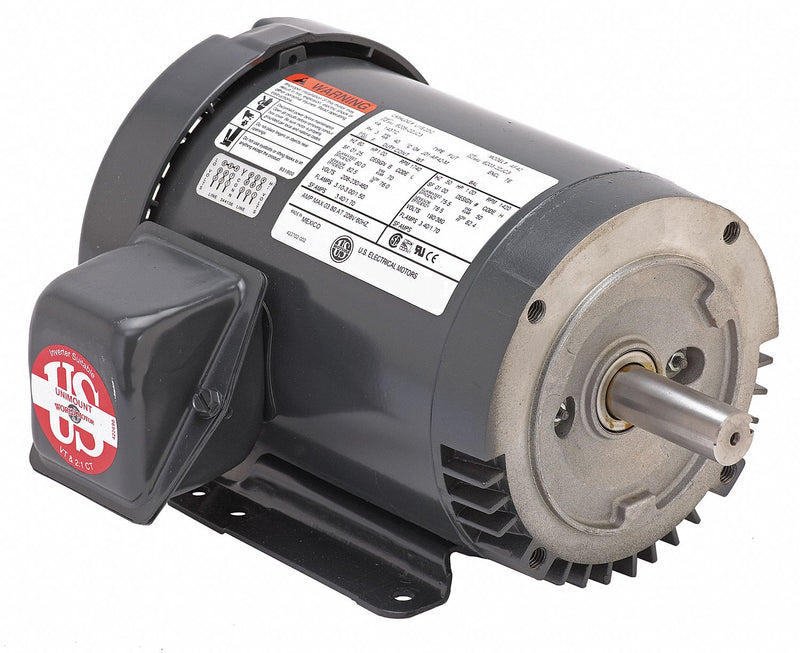

US Motors Nidec 25 HP, General Purpose Motor, 3-Phase, 3600 Nameplate RPM, 230/460 Voltage, 284TC Frame - U25P1DC
Availability : Usually Ships in 3 Business Days
Featuring an optimized slot design and low-loss stator laminating for greater efficiency, this inverter-rated motor offers high temperature pulse endurance performance and superior mechanical shear stability. The painted epoxy finish resists corrosion from saltwater.
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 25 |
| Nameplate RPM | 3600 |
| Frame | 284TC |
| Voltage | 230/460 |
| Hz | 60/50 |
| Phase | 3 |
| Full Load Amps | 57/28.4 |
| No. of Speeds | 1 |
| Motor Mounting Type | Face/Base |
| Motor Mounting Position | Horizontal or Vertical Shaft Down |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1.25 |
| Motor Bearings | Ball |
| Motor Frame Material | Cast Aluminum |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 1 7/8 in |
| Shaft Length | 4 5/8 in |
| Length Less Shaft | 23 11/16 in |
| Overall Length | 28 1/4 in |
| Motor Shaft Design | Keyed |
| Standards | CE, CSA, UL |
| Duty | Continuous |
| Motor Efficiency Group | NEMA Premium Efficient |
| Nominal Efficiency | 91.7 % |
| CC Number | CC030A |
| Manufacturers Warranty Length | 2 yr |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
