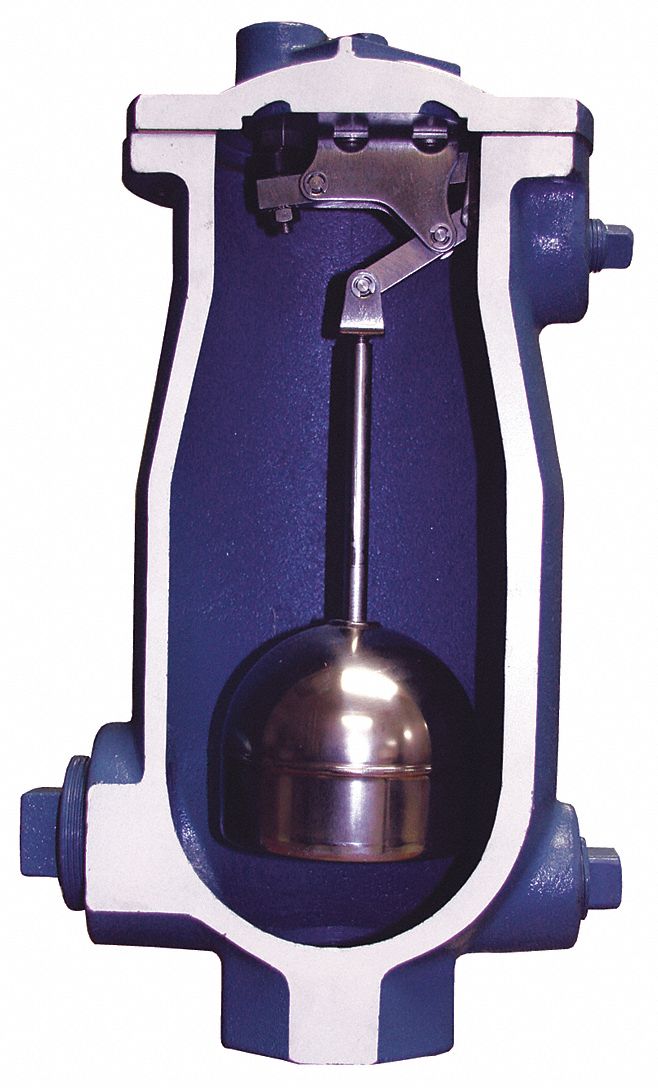

This Val-Matic air release valve helps release pockets of accumulated air in a pressurized water system. Model features a nonclogging design to help eliminate backwash and a resilient seal for positive shutoff. The float and internal components are 316 stainless steel. Valve is suitable for use in water distribution and transmission fire pumps, pressure filters, and hydropneumatic tools.
| Item | Air Release Valve |
| Inlet Size | 2 in |
| Outlet Size | 1/2 in |
| Application | Waste Water |
| Min. Pressure | 5 psi |
| Max. Pressure | 150 psi |
| Max. Vent Capacity | 55 scfm at 150 psi |
| Connection Type | FNPT |
| Max. Fluid Temp. | 250 Degrees F |
| Vacuum Pressure | 29 in Hg |
| Body Material | Cast Iron |
| Float Material | 316 Stainless Steel |
| Standards | ASTM A126, Class B |
