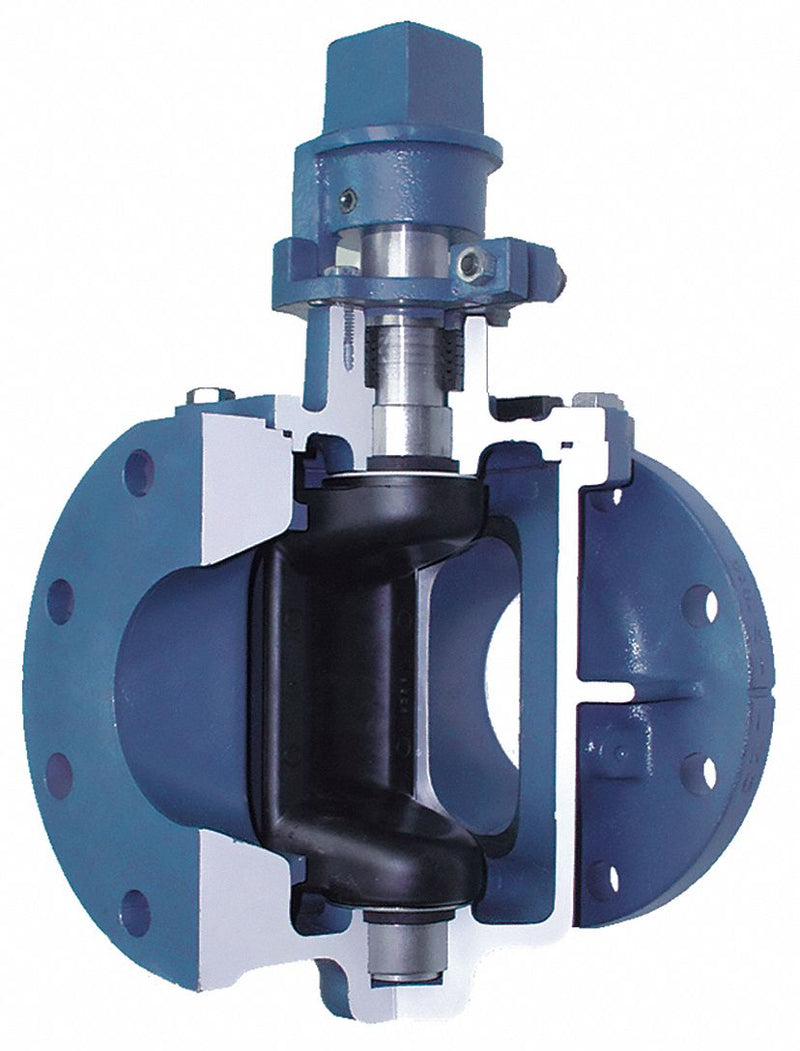

Plug Valves, Max. pressure: 175 psi at 150F,Shaft and seal system has packing overload protection (POP) to help prevent overtightening the packing material and to extend the packing life. Valves are lever operated and have vee-type packing that is field adjustable and replaceable. Can be used with potable/raw water, raw/screened sewage, and nonabrasive slurries. Suitable for use in vertical up/down flow systems, irrigation, or buried service.,Meet ASTM A126 Class B standard..
| Item | Plug Valve |
| Valve Design | 2-Way |
| Body Material | Cast Iron |
| Connection Type | Flanged |
| Pipe Size | 8 in |
| Max. Pressure | 175 psi |
| Temp. Range | -30 Degrees F to 150 Degrees F |
| Coefficient of Volume | 2,070 |
| Handle Type | Direct Nut Operated |
| Seal Material | Buna-N |
| Overall Height | 22 5/8 in |
| Overall Length | 11 1/2 in |
| Number of Bolts | 8 |
| Square Operating Nut Size | 2 in |
| Standards | ASTM A126 |
