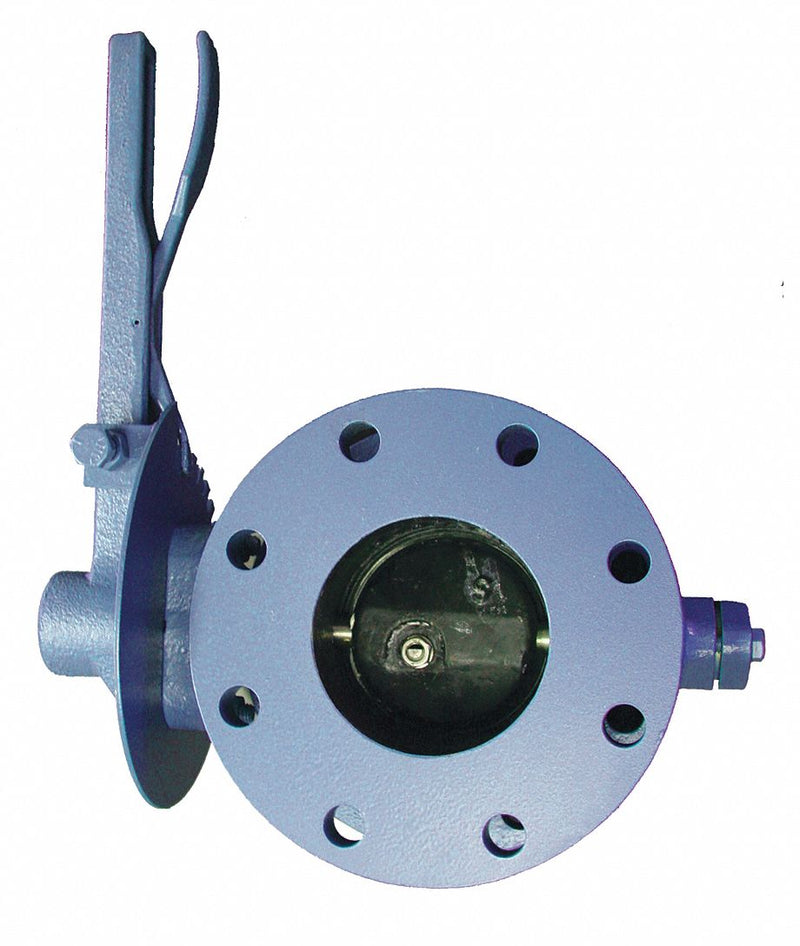

Fast closing to help prevent check valve slam and to allow for silent operation. Expanded body allows for full flow area. Double-guided disc reduces vibration and wear. For use with potable water and in vertical flow high head and buried service applications.
| Item - Check Valves | Check Valve |
| Flow Design | Single |
| Mechanism and Body Design | Inline Silent |
| Body Material - Valves | Cast Iron |
| Pipe or Tube Size - Check Valves | 3 in |
| Connection Type - Check Valves | Flange x Flange |
| Cracking Pressure - Check Valves | 0.5 psi |
| Mounting Orientation - Check Valves | Horizontal, Vertical |
| Seal Material - Check Valves | Metal |
| Max. Temp. - Valves | 200 Degrees F |
| Min. Temp. - Valves | 33 Degrees F |
| Max. Water Pressure - Valves | 200 psi |
| Max. Steam Pressure - Valves | Not Rated |
| Seat Material - Check Valves | Bronze |
| Spring Material - Check Valves | 316 Stainless Steel |
| Flow - Valves | 225 gpm |
| Full Flow - Valves | No |
| Application - Valves | General Purpose |
| Length | 6 in |
| Width | 7 1/2 in |
| Standards | ANSI B16.1 Class 125 |
