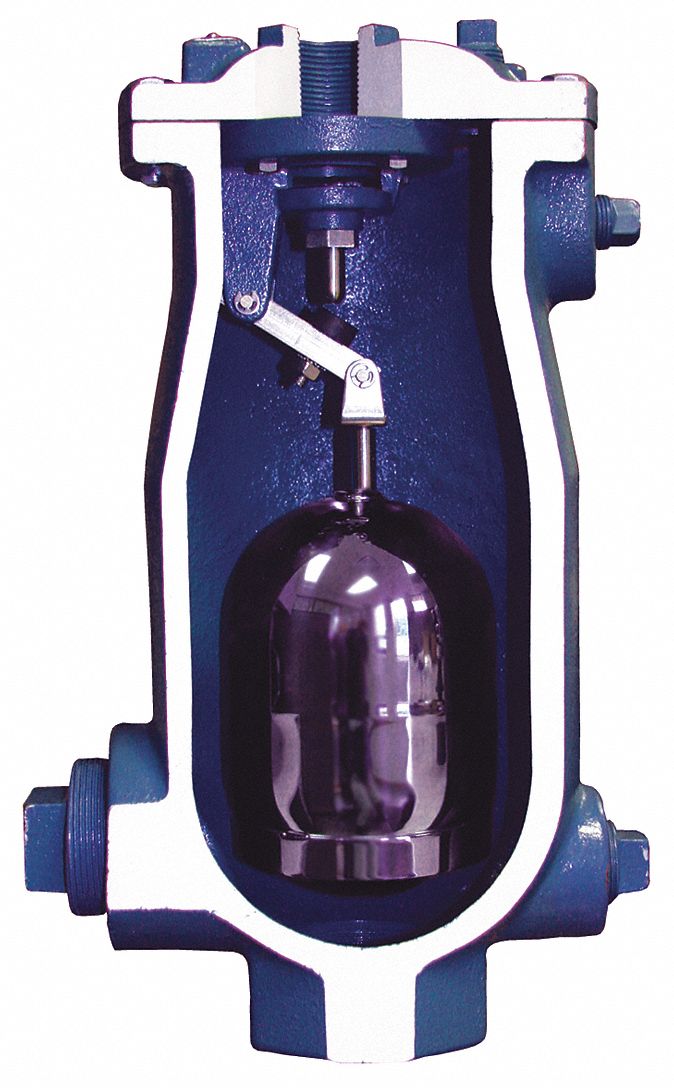

Val-Matic 150 psi Waste Water Air Release/Air Vacuum Valve, 3 in Inlet Size, 3 in Outlet Size - 803A

Val-MaticSKU: C1949518
MPN : 803A
Weight : 102.0 lb
filler

Price:
$4,026.51 $4,910.38

Availability : Usually Ships in 15-20 Business Days

Air Release and Air Vacuum Valves, Max. temp.: 250F Vacuum pressure: 29 Hg FNPT connection,Cast-iron construction. Float and internal components are 316 stainless steel.,Combination Air Release and Air Vacuum Valves,Incorporate both an air release valve and an air vacuum valve into 1 compact unit. Suitable for all high points in a water distribution transmission system.

ItemAir Release/Air Vacuum Valve
Inlet Size3 in
Outlet Size3 in
ApplicationWaste Water
Min. Pressure5 psi
Max. Pressure150 psi
Max. Vent Capacity45 scfm at 150 psi
Connection TypeFNPT
Max. Fluid Temp.250 Degrees F
Vacuum Pressure29 in Hg
Body MaterialCast Iron
Float Material316 Stainless Steel
StandardsASTM A126, Class B
