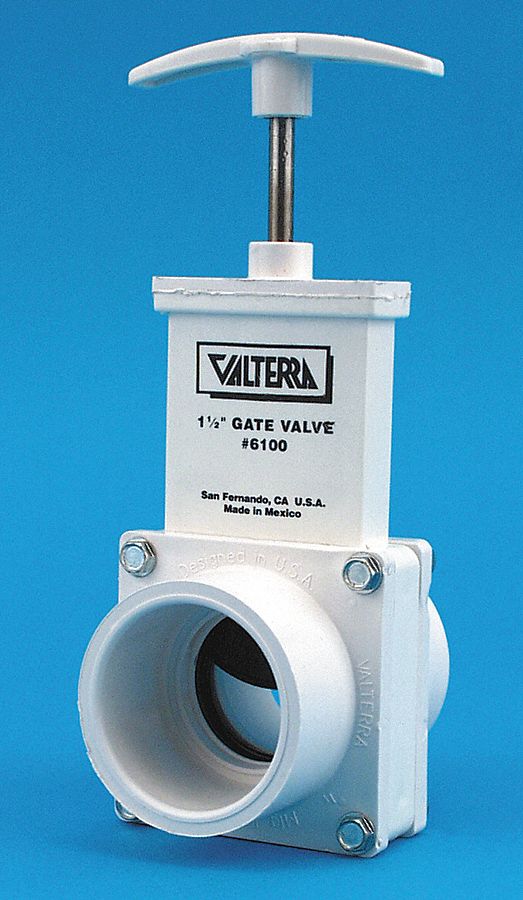

Quick-opening VALTERRA gate valve provides unrestricted flow for low-pressure tank and drain applications with liquids, gases, dry/bulk solids, and slurry. Body is tough PVC construction for durability and long life. Model also provides quick shutoff in low-pressure or vacuum lines. Valve can be easily disassembled for in-line servicing.
| Item | Gate Valve |
| Valve Class | Class 125 |
| Body Material - Valves | PVC |
| Connection Type | FIPT x MIPT |
| Pipe Size - Valves | 1 1/2 in |
| Max. Water Pressure - CWP | 45 psi |
| Valve Max. Fluid Temp. | 167 Degrees F |
| Valve Stem Type | Rising |
| Top of Handle to Inlet Center | 5 1/8 in |
| Inlet to Outlet Length | 3 3/8 in |
| Stem Material | 304 Stainless Steel |
| Bonnet Style | Bonded |
| Wedge Material | Polypropylene |
| Handle Material | PVC |
| Handle Type | Hand Wheel |
| Standards | MSS SP-70 |
