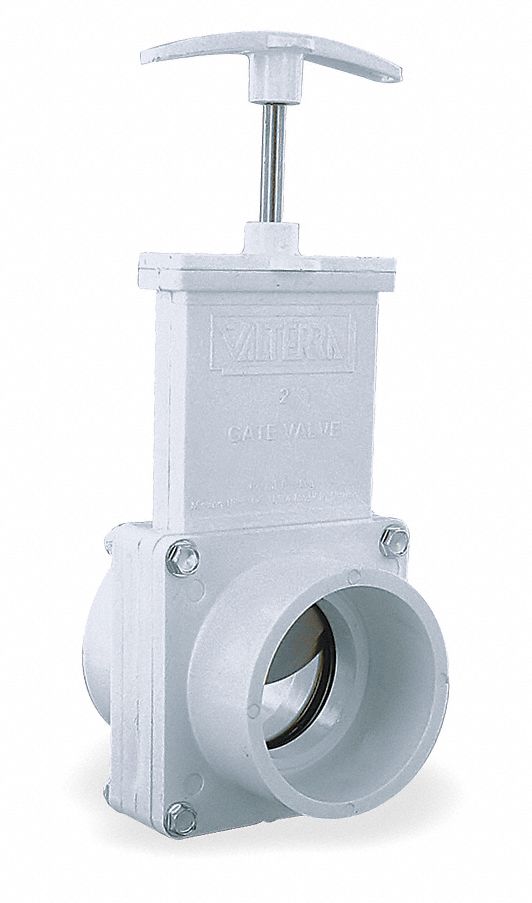

Valterra Gate Valve, Valve Class Class 125, PVC, MIPT Connection Type, Pipe Size - Valves 2 in - 4204GR

ValterraSKU: C1915637
MPN : 4204GR
Weight : 1.03 lb


$42.62 $68.74

Availability : Usually Ships in 3-5 Business Days

Gate Valve; Valve Class: Class 125; Body Material - Valves: PVC; Connection Type: MIPT; Pipe Size - Valves: 2 in; Max. Water Pressure - CWP: 40 psi; Valve Max. Fluid Temp.: 167 Degrees F; Valve Stem Type: Rising; Top of Handle to Inlet Center: 5 1/2 in; Inlet to Outlet Length: 3 1/2 in; Stem Material: 304 Stainless Steel; Bonnet Style: Bonded; Wedge Material: 304 Stainless Steel; Handle Material: PVC; Handle Type: Hand Wheel; Standards: MSS SP-70

ItemGate Valve
Valve ClassClass 125
Body Material - ValvesPVC
Connection TypeMIPT
Pipe Size - Valves2 in
Max. Water Pressure - CWP40 psi
Valve Max. Fluid Temp.167 Degrees F
Valve Stem TypeRising
Top of Handle to Inlet Center5 1/2 in
Inlet to Outlet Length3 1/2 in
Stem Material304 Stainless Steel
Bonnet StyleBonded
Wedge Material304 Stainless Steel
Handle MaterialPVC
Handle TypeHand Wheel
StandardsMSS SP-70
