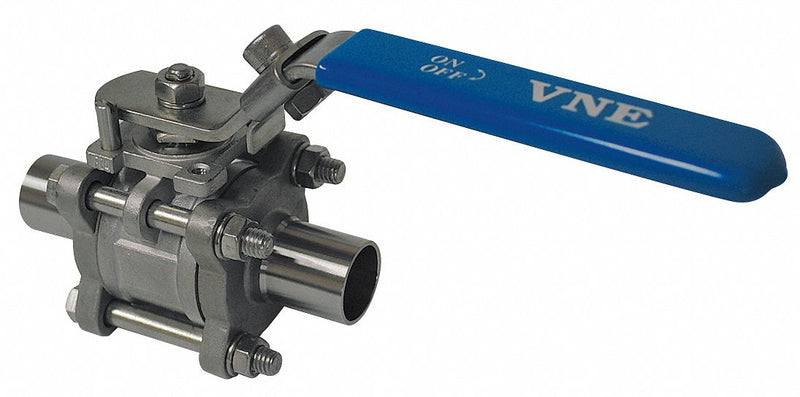

Sanitary Stainless Steel 3-Pc. Ball Valves, Temp. range: -65 to 320F,Design allows for unrestricted flow through valve. Can be serviced without complete removal from line. 316 stainless steel construction with PTFE seats. 20 Ra I.D. finish. Full port style. Blowout-proof stem. Pad lockable handle.,3-A Certified.
| Item | Sanitary Ball Valve |
| Body Material | 316 Stainless Steel |
| Body Style | 2-Way |
| General Connection Type | Weld |
| Valve Structure | 3-Piece |
| Pipe Size | 1/2 in |
| Connection Type | Butt Weld x Butt Weld |
| Port | Full |
| Max. Pressure | 1,000 psi |
| Temp. Range | -65 Degrees to 320 Degrees F |
| Surface Finish | 20 RA ID |
| Ball Material | 316 Stainless Steel |
| Seat Material | PTFE |
| Stem Type | Blowout Proof |
| Handle Type | Pad Lockable |
| Handle Material | AISI-304 Stainless Steel |
| Stem Material | 316 Stainless Steel |
| Body Seal Material | PTFE |
| Features | ISO 5211 Mounting Pad |
| Overall Length | 3 1/2 in |
| Standards | Seats In Compliance With FDA Regulations |
| Wall Thickness | 0.065 in |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Stainless Steel |
