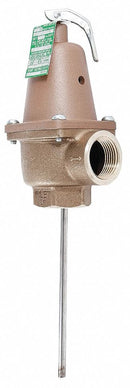

Watts Temperature and Pressure Relief Valve, 1,437,600 BtuH, 150 psi, 4 in Thermostat Length - 40XL-150-210-3/4"
Watts Temperature and Pressure Relief Valve, 1,437,600 BtuH, 150 psi, 4 in Thermostat Length - 40XL-150-210-3/4"

Watts Temperature and Pressure Relief Valve, 1,437,600 BtuH, 150 psi, 4 in Thermostat Length - 40XL-150-210-3/4"

WattsSKU: C2683465
MPN :
Weight : 2.4 lb

filler
Price:
$291.90 $470.81

Availability : Usually Ships in 7-10 Business Days

Temperature and Pressure Relief Valve; Inlet Type: MNPT; Outlet Type: FNPT; Inlet Size: 3/4 in; Outlet Size: 3/4 in; Thermostat Length: 4 in; Body Height: 5 5/8 in; BtuH: 1,437,600; Factory Set Pressure: 150 psi; Max. Temp.: 210 Degrees F; Shank Length: 2 in; Auto Re-Seating: No; Body Material: Bronze; Spring Material: 302 Stainless Steel; Body Width: 2 5/8 in; Standards: ANSI Z21.22, ASME, CSA, MIL-V-136-12D; Compliance: ANS1Z21.22, ASME Section 4, CSA

ItemTemperature and Pressure Relief Valve
Inlet TypeMNPT
Outlet TypeFNPT
Inlet Size3/4 in
Outlet Size3/4 in
Thermostat Length4 in
Body Height5 5/8 in
BtuH1,437,600
Factory Set Pressure150 psi
Max. Temp.210 Degrees F
Shank Length2 in
Auto Re-SeatingNo
Body MaterialBronze
Spring Material302 Stainless Steel
Body Width2 5/8 in
StandardsANSI Z21.22, ASME, CSA, MIL-V-136-12D
ComplianceANS1Z21.22, ASME Section 4, CSA
