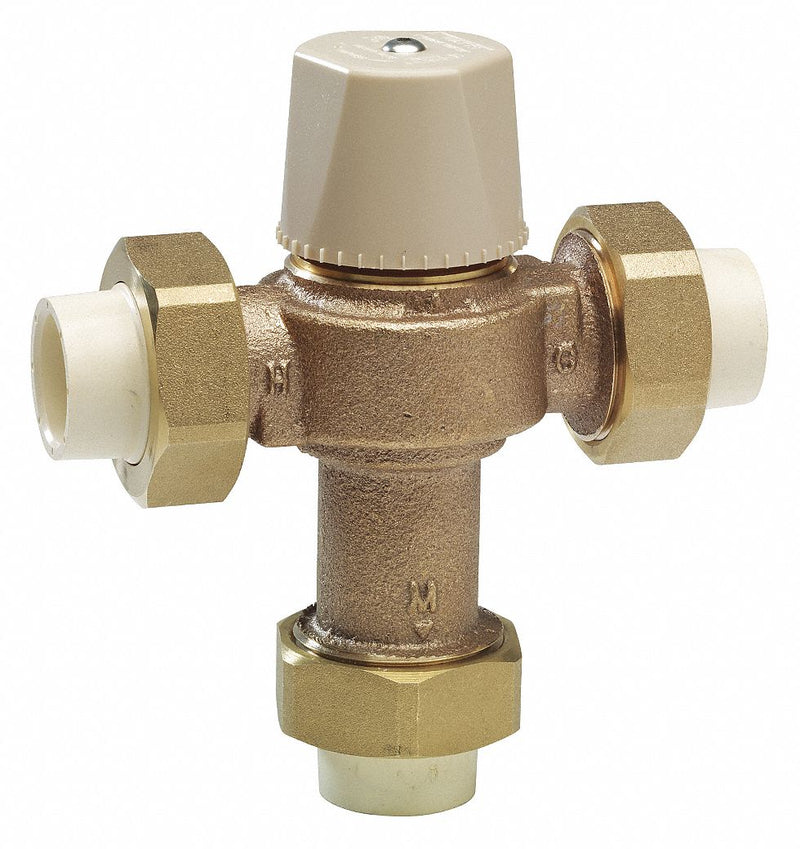

| Item | Thermostatic Mixing Valve |
| Body Material | Lead Free Copper Silicon Alloy |
| Flow Rate | 12 gpm |
| Inlet Type | Solvent Weld |
| Outlet Type | Solvent Weld |
| Inlet Size | 3/4 in |
| Outlet Size | 3/4 in |
| Temp. Range | 80 Degrees to 120 Degrees F |
| Max. Pressure | 150 psi |
| Overall Height | 5 9/16 in |
| Overall Width | 5 1/4 in |
| Inlet Temperature (Cold) | 39 Degrees to 85 Degrees F |
| Inlet Temperature (Hot) | 120 Degrees to 180 Degrees F |
| For Use With | Potable Water |
| Standards | ASSE 1017, ASSE 1069, ASSE 1070, IAMPO and UPC Listed |
| Compliance | ASSE 1017, ASSE 1069, ASSE 1070, IAMPO and UPC Listed |
