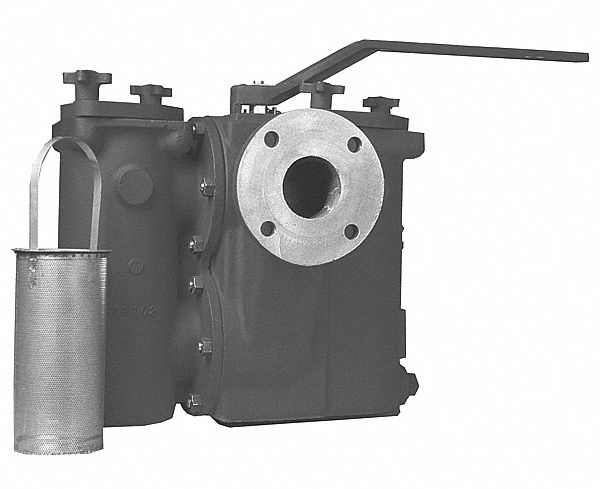

Typically used in cooling water, compressor, condenser, chemical processing, and pump station service applications, this metal duplex basket strainer diverts flow from one basket to another for easy in-line cleaning or changeout; no need to disassemble or remove the strainer. Two 316 stainless steel perforated baskets are included. Replacement baskets are available; call 1-800-GRAINGER (472-4643).
| Item | Duplex Strainer |
| Pipe Size | 1-1/2" |
| Connection Type | Flanged |
| Housing Material | Cast Iron |
| Max. Pressure | 200 psi @ 150 Degrees F |
| Length | 10" |
| Height | 10" |
| Width | 10" |
| Screen Area | 0.06 sq. in. |
| Screen Material | 304 Stainless Steel |
| Mesh | .062" |
| Gasket Material | Buna-N |
| Max. Fluid Temp. | 150 Degrees F |
| Blow-off Port | 1-1/4" |
| Class | 125 |
