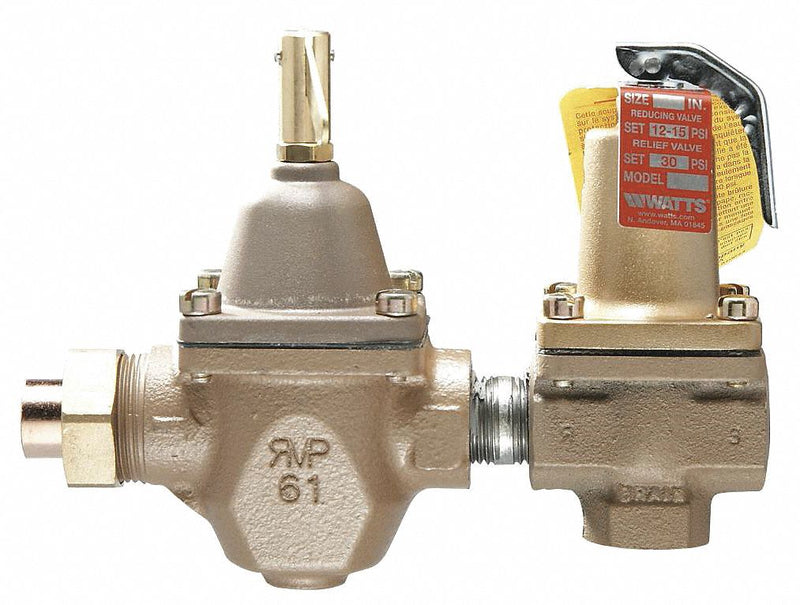

Fill and Relief, Max. water pressure: 100 psi Max. temp.: 212F,Fully adjustable from 10 to 25 lb. Include strainer screen. Cast-iron body, painted bronze.,Relief Valves,Nonmechanical seat-to-disc alignment. FNPT connections, except No. 46A979 is union solder connection.
| Item | Combination Fill and Relief Valve |
| Body Material | Iron/Bronze |
| Inlet Type | Union Solder |
| Outlet Type | FNPT |
| Inlet Size | 1/2 in |
| Outlet Size | 1/2 in |
| Factory Set Pressure | 30 psi |
| Pressure Range | 10 to 25 psi |
| Disc Material | Silicone |
| Overall Height | 5 5/16 in |
| Overall Length | 7 in |
| Seat Material | Bronze |
| Spring Material | Stainless Steel |
| Temp. Range | 0 Degrees to 212 Degrees F |
| Test Lever | Yes |
