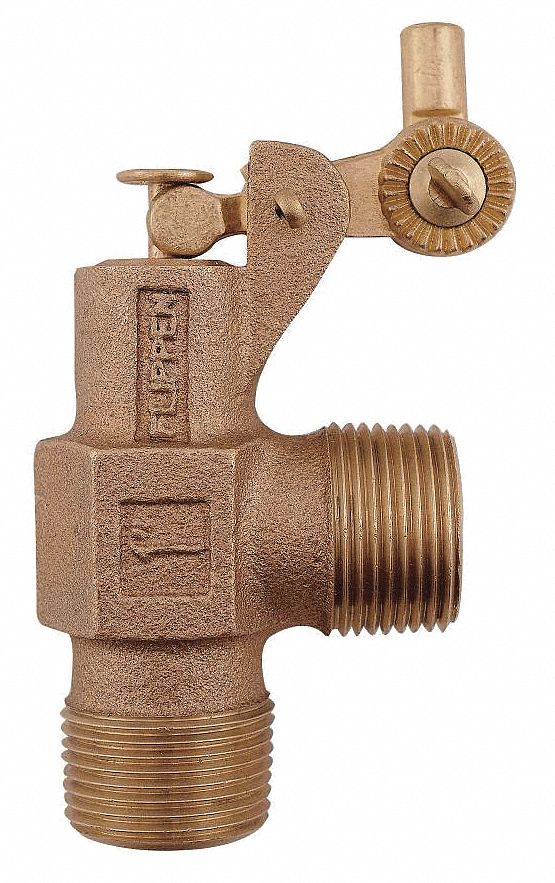

This WATTS float valve with threaded outlet is suitable for the reliable control of liquids in cattle watering tanks, cooling towers, heat transfer units, refrigeration units, and other applications where float,valves are required. Model has a cotter pin pivot arm assembly and has a float arm that you can adjust easily to control the water level.
| Item | Float Valve with Threaded Outlet |
| Mounting | Pipe |
| Size | 1 in |
| Connection Type | MNPT |
| Rod Thread | 1/4 in -20 |
| Rod Length | 12 in |
| Rod Material | Brass |
| Body Material | Bronze |
| Valve Flow - Pressure (1) | 50 psi |
| Valve Flow - Flow (1) | 100 gpm |
| Valve Flow - Pressure (2) | 100 psi |
| Valve Flow - Flow (2) | 150 gpm |
| Max. Pressure | 125 psi |
| Max. Temp. | 180 Degrees F |
| Valve Material | Bronze |
