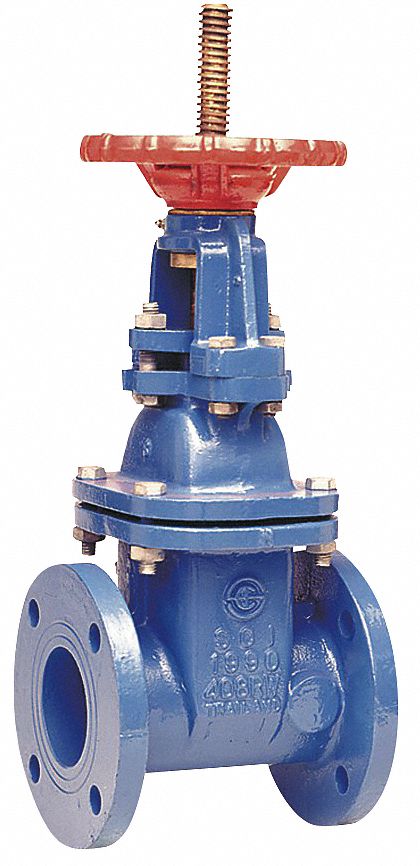

Watts Outside Stem and Yoke Gate Valve, Valve Class Class 250, Cast Iron, Flange Connection Type - OSY-RW-Gate 4"

WattsSKU: C1915661
MPN :
Weight : 89.0 lb
filler

Price:
$1,196.05 $1,458.60

Availability : Usually Ships in 7-10 Business Days

With a fusion bonded, powder-coated body that resists corrosion, this WATTS outside stem and yoke gate valve allows easy in-line service. Model features a flexible wedge disc design that provides positive seating and resistance against high differential pressure. Valve has low head loss, full port flow, and can be used as a throttling valve. Suitable for use as a fire main shutoff and in distribution,service.

ItemOutside Stem and Yoke Gate Valve
Valve ClassClass 250
Body Material - ValvesCast Iron
Connection TypeFlange
Pipe Size - Valves4 in
Max. Water Pressure - CWP250 psi
Valve Max. Fluid Temp.140 Degrees F
Top of Handle to Inlet Center22 3/4 in
Inlet to Outlet Length9 in
Stem MaterialBronze
Wedge MaterialCast Iron
Handle MaterialCast Iron
Handle TypeHand Wheel
StandardsASTM A126 Class B Iron, AWWA 509, FM, MSS-SP-70, UL, ULC
