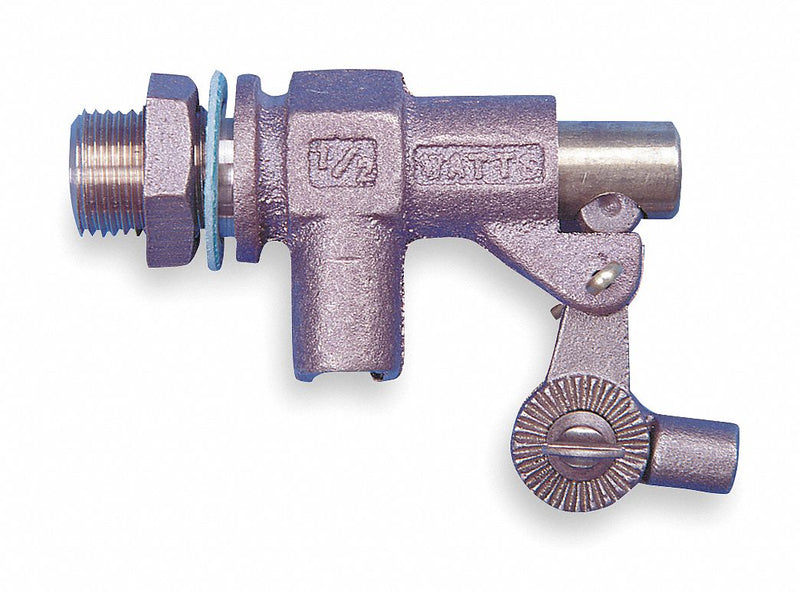

Watts Bulkhead-Mount Float Valve, 1/4 in -20 Rod Thread, Bronze - HD 375-12

WattsSKU: C2683400
MPN : HD 375-12
Weight : 0.6 lb
filler

Price:
$61.52 $75.02

Availability : Usually Ships in 7-10 Business Days

With Locknut and Gasket,Bulkhead-mount valves have a machined flange on inlet side with male straight pipe threading for locknut. Outlet connection is nonthreaded.,Bronze Float Valves,Heavy-Duty, Max. pressure: 165 psi Max. temp.: 180F Can be tank wall-mounted

ItemFloat Valve
MountingBulkhead
Size3/8 in
Connection TypeNPSM
Rod Thread1/4 in -20
Rod Length10 in
Rod MaterialBrass
Body MaterialBronze
Valve Flow - Pressure (1)50 psi
Valve Flow - Flow (1)14 gpm
Valve Flow - Pressure (2)100 psi
Valve Flow - Flow (2)21 gpm
Max. Pressure165 psi
Max. Temp.180 Degrees F
IncludesLocknut and Gasket
Valve MaterialBronze
