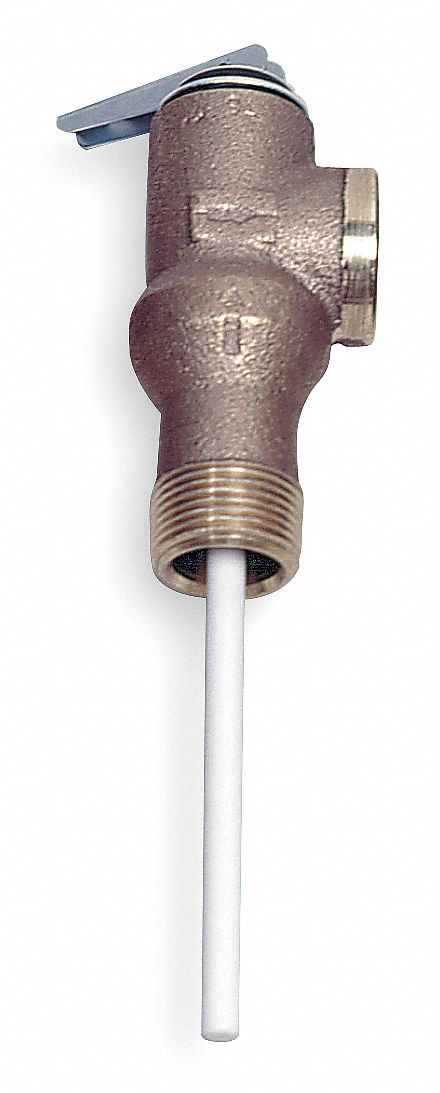

T&P Valves, Max. temp.: 210F,Provide automatic temperature and pressure protection for hot water heaters and supply tanks. Test lever allows pressure checks during operation.,ASME rated, CSA Certified, and meet ANSI Z21.22 standard.,Extended Shank,Use with water heaters containing thick insulation.
| Item | Temperature and Pressure Relief Valve |
| Inlet Type | MNPT |
| Outlet Type | FNPT |
| Inlet Size | 3/4 in |
| Outlet Size | 3/4 in |
| Thermostat Length | 4 in |
| Body Height | 4 1/4 in |
| BtuH | 100,000 |
| Factory Set Pressure | 150 psi |
| Max. Temp. | 210 Degrees F |
| Shank Length | Extended |
| Auto Re-Seating | No |
| Body Material | Bronze |
| Spring Material | Stainless Steel |
| Body Width | 1 7/8 in |
| Standards | ASME Rated, CGA Listed, MIL-V-13612C, Meet FHA Specifications, Military Spec, Rated by AGA for Heaters Up to 100000 Btu/HR Input ANSI Z21.22 Standard and UL listed |
WARNING: California Residents
This product and/or packaging can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
