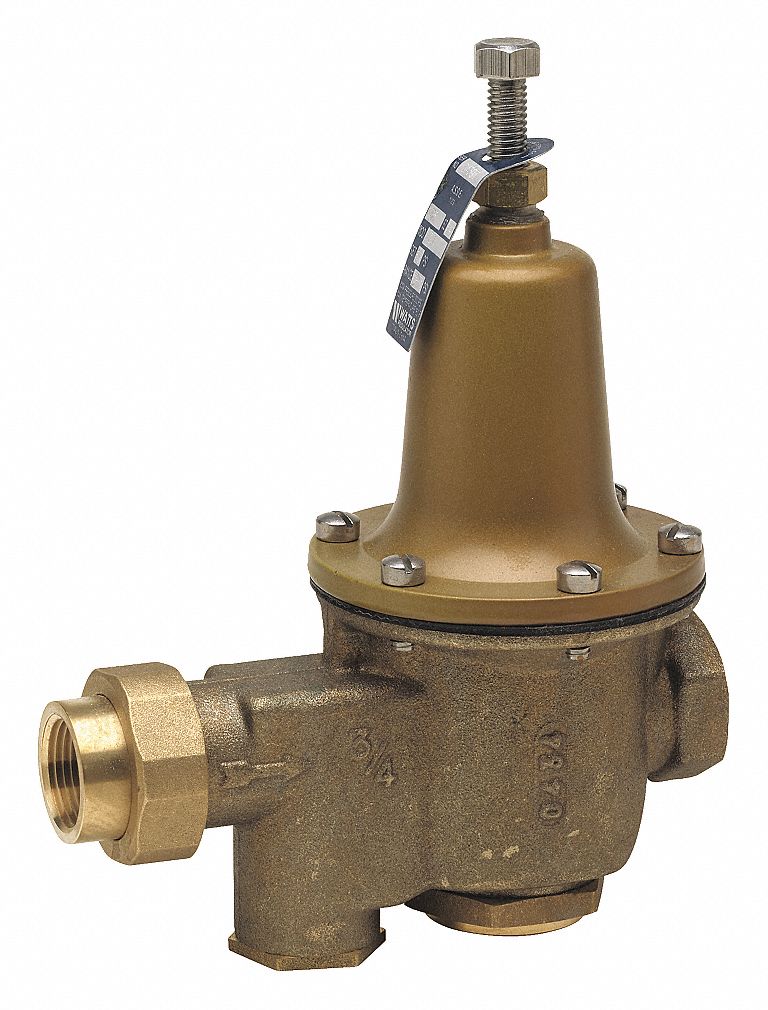

Watts Water Pressure Reducing Valve, Low Pressure Valve Type, Lead Free Copper Silicon Alloy, 2 in Pipe Si - LFU5B-LP-Z3

WattsSKU: C2683514
Weight : 21.36 lb


$4,429.28 $7,144.00

Availability : Usually Ships in 7-10 Business Days

This Watts water pressure reducing valve is designed to reduce incoming water pressure and help protect plumbing system components and to reduce water consumption. Model has a bypass feature that allows water to flow back through the valve into the main when pressures, due to thermal expansion on the outlet side of the valve, exceed the pressure in the main supply. Valve has a sensitive spring and large diaphragm area for accurate pressure control and a wide range of adjustment. Large integral stainless steel strainer screen can be easily removed for cleaning. You can also remove the disc without special tools and without dismantling the valve.

ItemWater Pressure Reducing Valve
Valve TypeLow Pressure
MaterialLead Free Copper Silicon Alloy
Pipe Size2 in
Preset Pressure Settings30 psi
Pressure Adjustment Range10 to 35 psi
Connection TypeFNPT
Height12 1/4 in
Length10 7/8 in
Max. Temp.160 Degrees F
Max. Pressure300 psi
StandardsANSI A112.262, ASSE 1003, CSA B356, IAPMO, Southern Standard Plumbing Code
