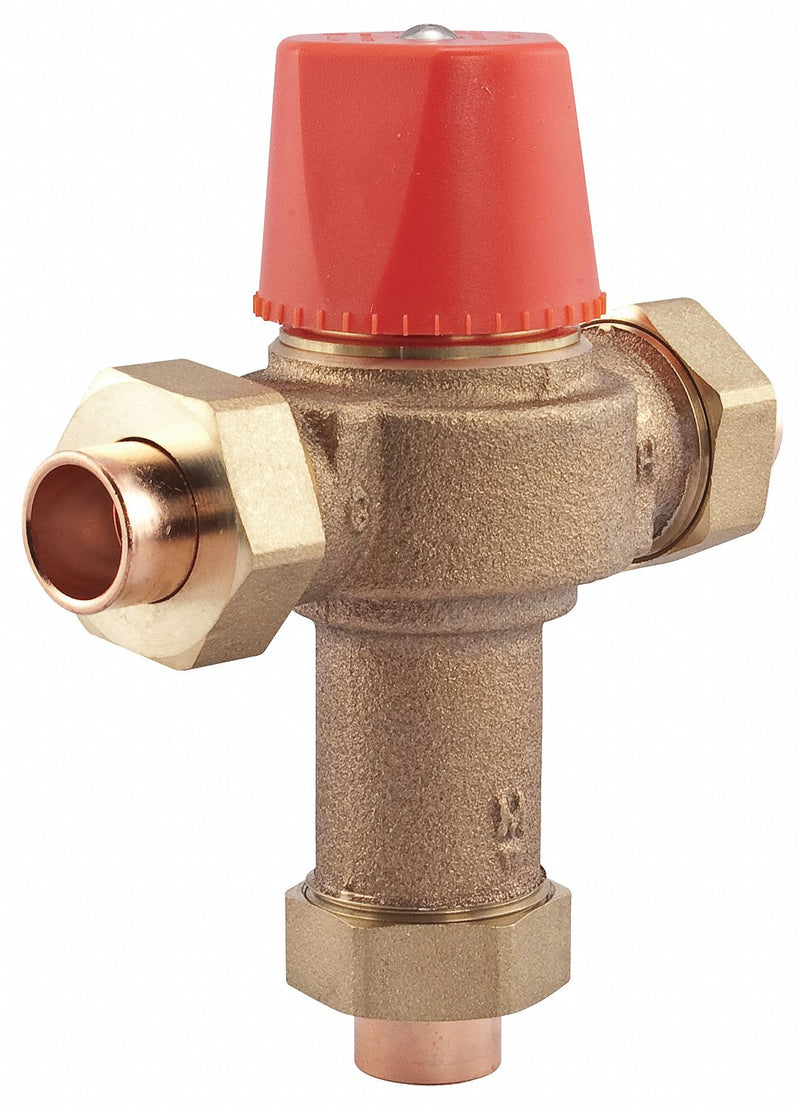

Watts 1/2 in Solder Inlet Type Mixing Valve, Brass, 0.5 to 23 gpm - 1/2 LF 1170-US

WattsSKU: C1931541
MPN : 1/2 LF 1170-US
Weight : 1.88 lb
filler

Price:
$220.14 $268.46

Availability : Usually Ships in 7-10 Business Days

Low-Lead Point of Use Mixing Valves,Hot water temperature control valves are specifically designed for mixing cold and hot water on hot water supply systems. Can be used for various applications to reduce the temperature of hot water from the system and are ideal for radiant heat applications. Can be used in under-the-sink applications to help prevent scalding in commercial and residential applications.,Certified for use in potable water applications.

ItemMixing Valve
Body MaterialBrass
Flow Rate0.5 to 23 gpm
Inlet TypeSolder
Outlet TypeSolder
Inlet Size1/2 in
Outlet Size1/2 in
Temp. Range90 Degrees to 160 Degrees F
Max. Pressure150 psi
Overall Height5 7/16 in
Overall Width4 7/8 in
Inlet Temperature (Cold)40 Degrees to 85 Degrees F
Inlet Temperature (Hot)120 Degrees to 200 Degrees F
StandardsASSE 1017, CSA B125 certified
