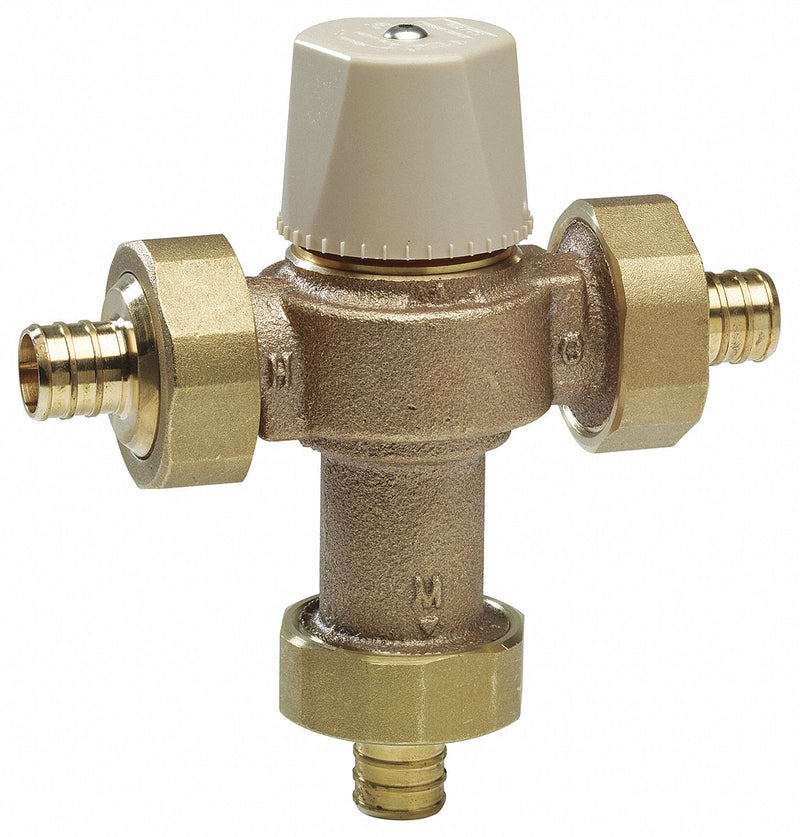

Low-Lead Point of Use Mixing Valves,Hot water temperature control valves are specifically designed for mixing cold and hot water on hot water supply systems. Can be used for various applications to reduce the temperature of hot water from the system and are ideal for radiant heat applications. Can be used in under-the-sink applications to help prevent scalding in commercial and residential applications.,Certified for use in potable water applications.
| Item | Mixing Valve |
| Body Material | Brass |
| Flow Rate | 20 gpm at 125 psi |
| Inlet Type | PEX |
| Outlet Type | PEX |
| Inlet Size | 1/2 in |
| Outlet Size | 1/2 in |
| Temp. Range | 80 Degrees to 120 Degrees F |
| Max. Pressure | 150 psi |
| Overall Height | 5 9/16 in |
| Overall Width | 5 1/4 in |
| Inlet Temperature (Cold) | 39 Degrees to 85 Degrees F |
| Inlet Temperature (Hot) | 120 Degrees to 180 Degrees F |
| For Use With | Baths, Lavatories, Showers, Sinks |
| Includes | Hex Wrench |
| Standards | ASSE 1016-96, ASSE 1017ASSE 1069, ASSE 1070CSA B125 Certified |
