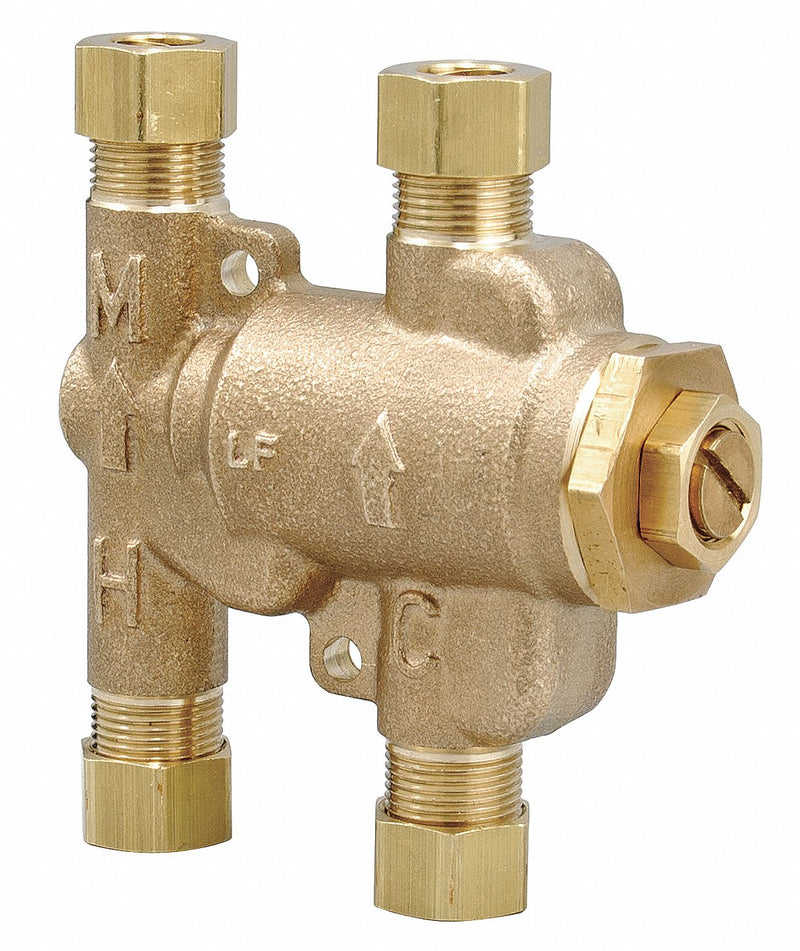

Watts 3/8 in Compression Inlet Type Mixing Valve, Low-Lead Brass, 0.5 to 2.5 gpm - 3/8 LFUSGB-M2

WattsSKU: C1931529
Weight : 1.0 lb


$251.59 $405.79

Availability : Usually Ships in 7-10 Business Days

Low-Lead Point of Use Mixing Valves,Hot water temperature control valves are specifically designed for mixing cold and hot water on hot water supply systems. Can be used for various applications to reduce the temperature of hot water from the system and are ideal for radiant heat applications. Can be used in under-the-sink applications to help prevent scalding in commercial and residential applications.,Certified for use in potable water applications.

ItemMixing Valve
Body MaterialLow-Lead Brass
Flow Rate0.5 to 2.5 gpm
Inlet TypeCompression
Outlet TypeCompression
Inlet Size3/8 in
Outlet Size3/8 in
Temp. Range80 Degrees to 120 Degrees F
Max. Pressure150 psi
Overall Height3 3/8 in
Overall Width3 3/16 in
Inlet Temperature (Cold)39 Degrees to 80 Degrees F
Inlet Temperature (Hot)120 Degrees to 180 Degrees F
StandardsASSE 1070
