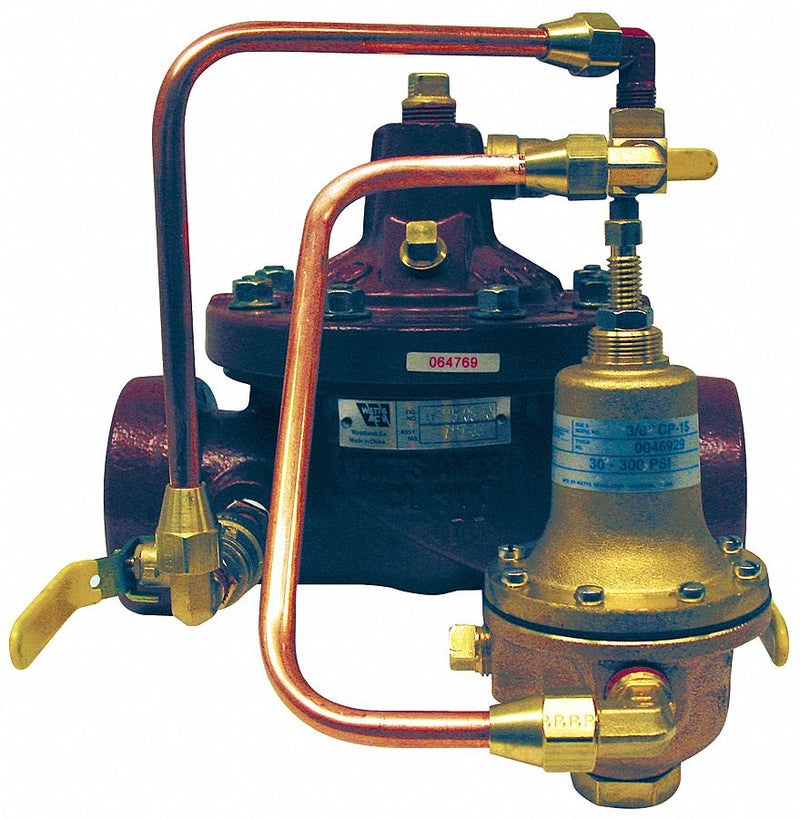

Designed to automatically reduce a fluctuating higher upstream pressure to a constant lower downstream pressure regardless of varying flow rates, this WATTS pressure reducing control valve can throttle to sustain a minimum upstream pressure. Model is controlled by a normally open, pressure reducing pilot that Opens (allowing fluid out of the main valve cover chamber) when downstream pressure is below the adjustable setpoint, and Closes (allowing fluid to fill the main valve cover chamber) when downstream pressure is above the adjustable setpoint.
| Item | Pressure Reducing Control Valve |
| Valve Type | Full Port |
| Pipe Size | 2 1/2 in |
| Connection Type | Threaded |
| Operating Pressure | 400 psi |
| Max. Continuous Flow Rate | 300 gpm |
| Max. Intermittent Flow Rate | 390 gpm |
| Port Size | 1/2 in x 1/2 in x 1/8 in |
| Max. Fluid Temp. | 160 Degrees F |
| Pilot Adjustment Range | 30 to 300 psi |
| Body Material | Ductile Iron ASTM A536 |
| Cover Material | Ductile Iron |
| Elastomer Material | Buna N |
| Nut Material | 304 Stainless Steel |
| Spring Material | 302 Stainless Steel |
| Stem Material | 304 Stainless Steel |
| Trim Material | 316 Stainless Steel |
| Coating | Fusion Bonded Epoxy Lined and Coated |
| Standards | ASTM A536, NSF Listed |
