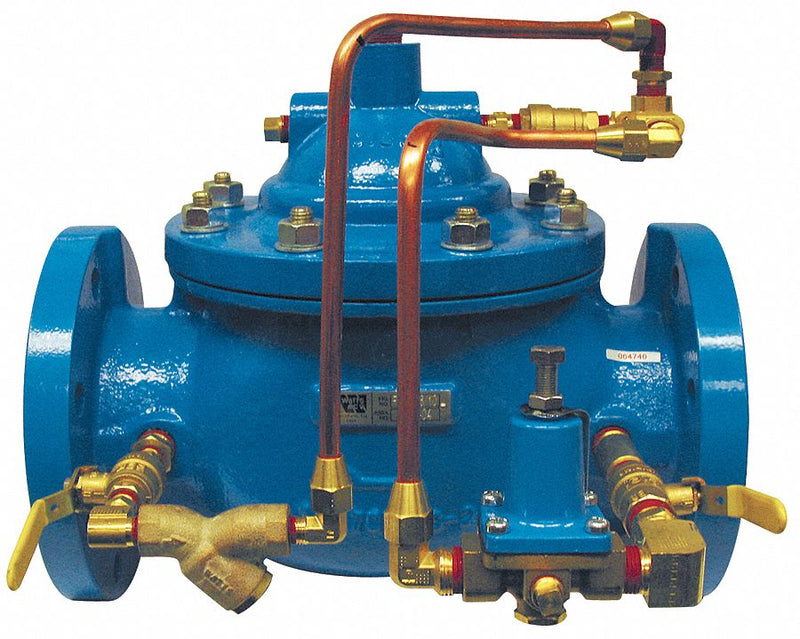

This pressure-reducing control valve can automatically reduce a fluctuating higher upstream pressure to a constant lower downstream pressure, regardless of varying flow rates. It features a ductile iron body and cover.
| Item | Pressure Reducing Control Valve |
| Valve Type | Single Chamber |
| Pipe Size | 3 in |
| Connection Type | Flanged |
| Operating Pressure | 250 psi |
| Max. Continuous Flow Rate | 460 gpm |
| Max. Intermittent Flow Rate | 570 gpm |
| Port Size | 1/2 in x 1/2 in x 3/8 in |
| Max. Fluid Temp. | 160 Degrees F |
| Pilot Adjustment Range | 30 to 300 psi |
| Body Material | Ductile Iron ASTM A536 |
| Cover Material | Ductile Iron |
| Elastomer Material | Buna N |
| Nut Material | 304 Stainless Steel |
| Spring Material | 302 Stainless Steel |
| Stem Material | 304 Stainless Steel |
| Trim Material | 316 Stainless Steel |
| Coating | Fusion Bonded Epoxy Lined and Coated |
| Standards | ASTM A536, NSF Listed |
