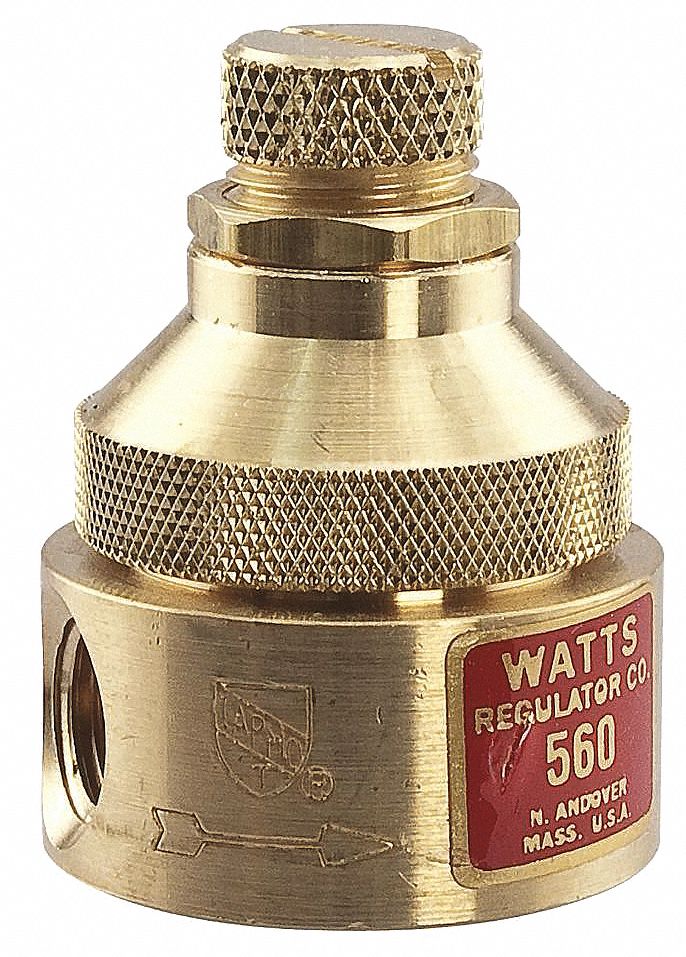

Compact size for use in tight spaces, this WATTS pressure regulator is designed to reduce incoming water pressure to help protect plumbing system components and reduce water consumption. Stainless steel stem and spring for corrosion resistance and long life. The heavy-duty adjusting screw is both slotted and knurled to ease adjustments. Suitable for use in special industrial process applications, miscellaneous plumbing applications, and on OEM equipment.
| Item | Pressure Regulator |
| Series | 560 |
| Body Material | Lead Free Brass |
| Inlet Size | 1/8 in |
| Outlet Size | 1/8 in |
| Length | 1 1/2 in |
| Height | 2 in |
| Application | Water |
| Connection Type | FNPT |
| Pressure Adjustment Range | 0 to 60 psi |
| Gauge Port Size | 1/8 in |
| Seal Material | Buna N |
| Max. Temp. | 140 Degrees F |
| Max. Pressure | 300 psi |
| Standards | IAPMO |
