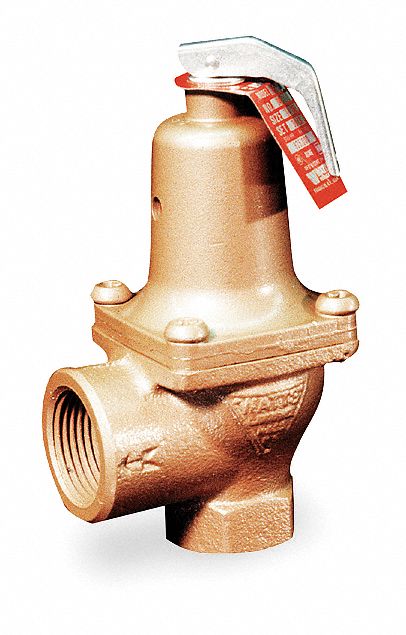

Watts Bronze Safety Relief Valve, FNPT Inlet Type, FNPT Outlet Type - 1 174A 125
Availability : Usually Ships in 1-3 Business Days
Safety Relief Valve; Body Material: Bronze; Inlet Type: FNPT; Outlet Type: FNPT; Inlet Size: 1 in; Outlet Size: 1 in; Factory Set Pressure: 125 psi; Pressure Range: 30 to 150 psi; BtuH: 3,215,000; Disc Material: Nonmetallic; Overall Height: 5 3/4 in; Application: For Pressure Protection of Hot Water Heating Boilers; Overall Length: 3 in; Seat Material: Metal; Spring Material: Stainless Steel; Temp. Range: 0 Degrees to 250 Degrees F; Test Lever: Yes; Standards: MILV-136-RD, Rating ASME. NB and HV, Type III
| Item | Safety Relief Valve |
| Body Material | Bronze |
| Inlet Type | FNPT |
| Outlet Type | FNPT |
| Inlet Size | 1 in |
| Outlet Size | 1 in |
| Factory Set Pressure | 125 psi |
| Pressure Range | 30 to 150 psi |
| BtuH | 3,215,000 |
| Disc Material | Nonmetallic |
| Overall Height | 5 3/4 in |
| Application | For Pressure Protection of Hot Water Heating Boilers |
| Overall Length | 3 in |
| Seat Material | Metal |
| Spring Material | Stainless Steel |
| Temp. Range | 0 Degrees to 250 Degrees F |
| Test Lever | Yes |
| Standards | MILV-136-RD, Rating ASME. NB and HV, Type III |
