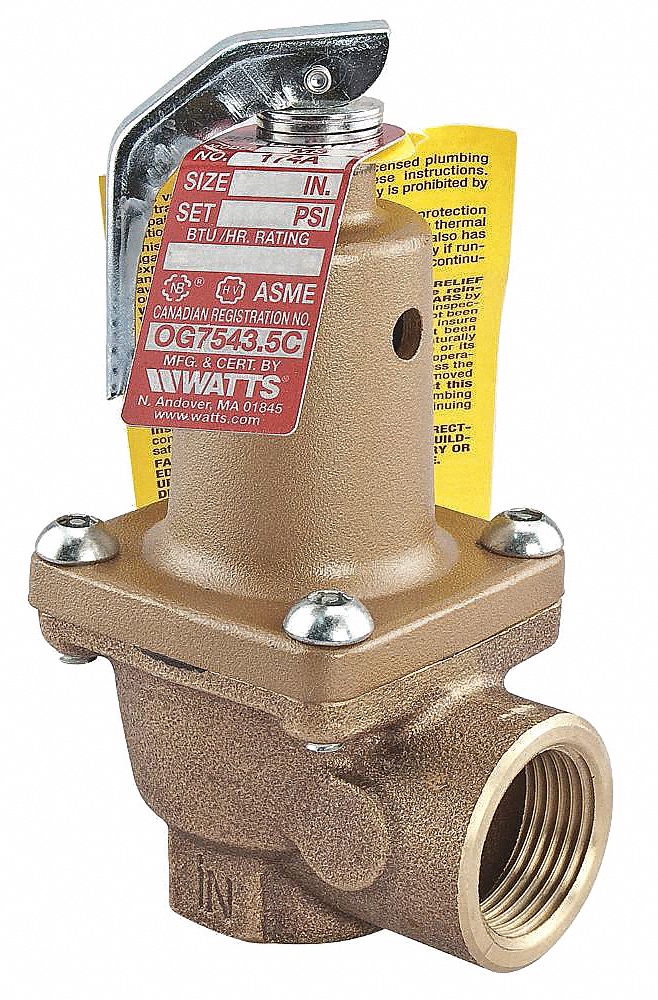

Watts Bronze Safety Relief Valve, FNPT Inlet Type, FNPT Outlet Type - 1 174A-150

WattsSKU: C1932114
MPN : 1 174A-150
Weight : 2.0 lb

filler

Price:
$438.09 $706.60

Availability : Usually Ships in 7-10 Business Days

Safety Relief Valve; Body Material: Bronze; Inlet Type: FNPT; Outlet Type: FNPT; Inlet Size: 1 in; Outlet Size: 1 in; Factory Set Pressure: 150 psi; Pressure Range: 30 to 150 psi; BtuH: 3,795,000; Disc Material: Silicone; Overall Height: 5 3/4 in; Application: For Pressure Protection of Hot Water Heating Boilers; Overall Length: 3 in; Seat Material: Bronze; Spring Material: Stainless Steel; Temp. Range: 0 Degrees to 250 Degrees F; Test Lever: Yes; Standards: ASME SectionIV Rated

ItemSafety Relief Valve
Body MaterialBronze
Inlet TypeFNPT
Outlet TypeFNPT
Inlet Size1 in
Outlet Size1 in
Factory Set Pressure150 psi
Pressure Range30 to 150 psi
BtuH3,795,000
Disc MaterialSilicone
Overall Height5 3/4 in
ApplicationFor Pressure Protection of Hot Water Heating Boilers
Overall Length3 in
Seat MaterialBronze
Spring MaterialStainless Steel
Temp. Range0 Degrees to 250 Degrees F
Test LeverYes
StandardsASME SectionIV Rated
