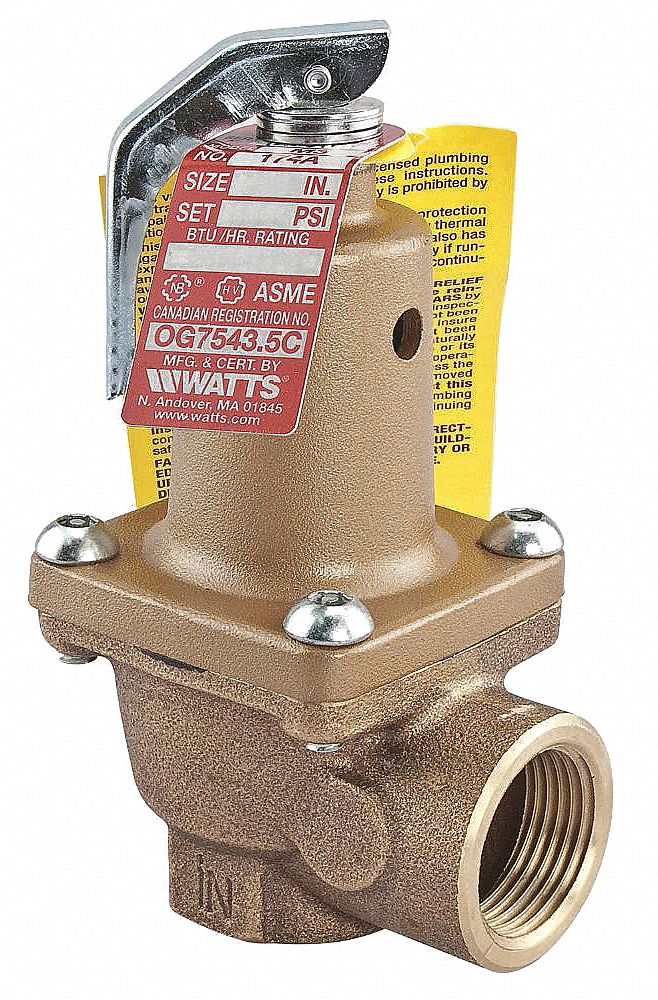

Watts Bronze Safety Relief Valve, FNPT Inlet Type, FNPT Outlet Type - 2 174A-050

WattsSKU: C1932120
MPN : 2 174A-050
Weight : 15.2 lb
filler

Price:
$1,202.09 $1,465.96

Availability : Usually Ships in 7-10 Business Days

Safety Relief Valve; Body Material: Bronze; Inlet Type: FNPT; Outlet Type: FNPT; Inlet Size: 2 in; Outlet Size: 2 in; Factory Set Pressure: 50 psi; Pressure Range: 30 to 150 psi; BtuH: 5,575,000; Disc Material: Silicone; Overall Height: 11 5/8 in; Application: For Pressure Protection of Hot Water Heating Boilers; Overall Length: 6 1/4 in; Seat Material: Bronze; Spring Material: Stainless Steel; Temp. Range: 0 Degrees to 250 Degrees F; Test Lever: Yes; Standards: ASME SectionIV Rated

ItemSafety Relief Valve
Body MaterialBronze
Inlet TypeFNPT
Outlet TypeFNPT
Inlet Size2 in
Outlet Size2 in
Factory Set Pressure50 psi
Pressure Range30 to 150 psi
BtuH5,575,000
Disc MaterialSilicone
Overall Height11 5/8 in
ApplicationFor Pressure Protection of Hot Water Heating Boilers
Overall Length6 1/4 in
Seat MaterialBronze
Spring MaterialStainless Steel
Temp. Range0 Degrees to 250 Degrees F
Test LeverYes
StandardsASME SectionIV Rated
