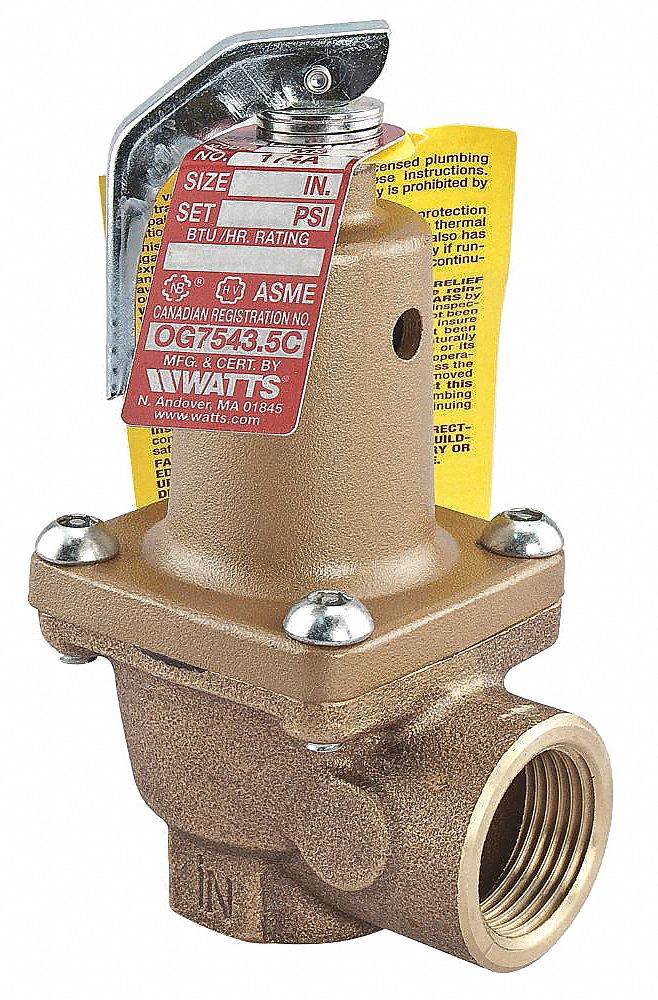

Watts Bronze Safety Relief Valve, FNPT Inlet Type, FNPT Outlet Type - 3/4 174A-050

WattsSKU: C1932108
MPN : 3/4 174A-050
Weight : 1.1 lb
filler

Price:
$131.33 $160.16

Availability : Usually Ships in 1-3 Business Days

Safety Relief Valve; Body Material: Bronze; Inlet Type: FNPT; Outlet Type: FNPT; Inlet Size: 3/4 in; Outlet Size: 3/4 in; Factory Set Pressure: 50 psi; Pressure Range: 30 to 150 psi; BtuH: 950,000; Disc Material: Silicone; Overall Height: 5 1/8 in; Application: For Pressure Protection of Hot Water Heating Boilers; Overall Length: 2 1/2 in; Seat Material: Bronze; Spring Material: Stainless Steel; Temp. Range: 0 Degrees to 250 Degrees F; Test Lever: Yes; Standards: ASME SectionIV Rated

ItemSafety Relief Valve
Body MaterialBronze
Inlet TypeFNPT
Outlet TypeFNPT
Inlet Size3/4 in
Outlet Size3/4 in
Factory Set Pressure50 psi
Pressure Range30 to 150 psi
BtuH950,000
Disc MaterialSilicone
Overall Height5 1/8 in
ApplicationFor Pressure Protection of Hot Water Heating Boilers
Overall Length2 1/2 in
Seat MaterialBronze
Spring MaterialStainless Steel
Temp. Range0 Degrees to 250 Degrees F
Test LeverYes
StandardsASME SectionIV Rated
