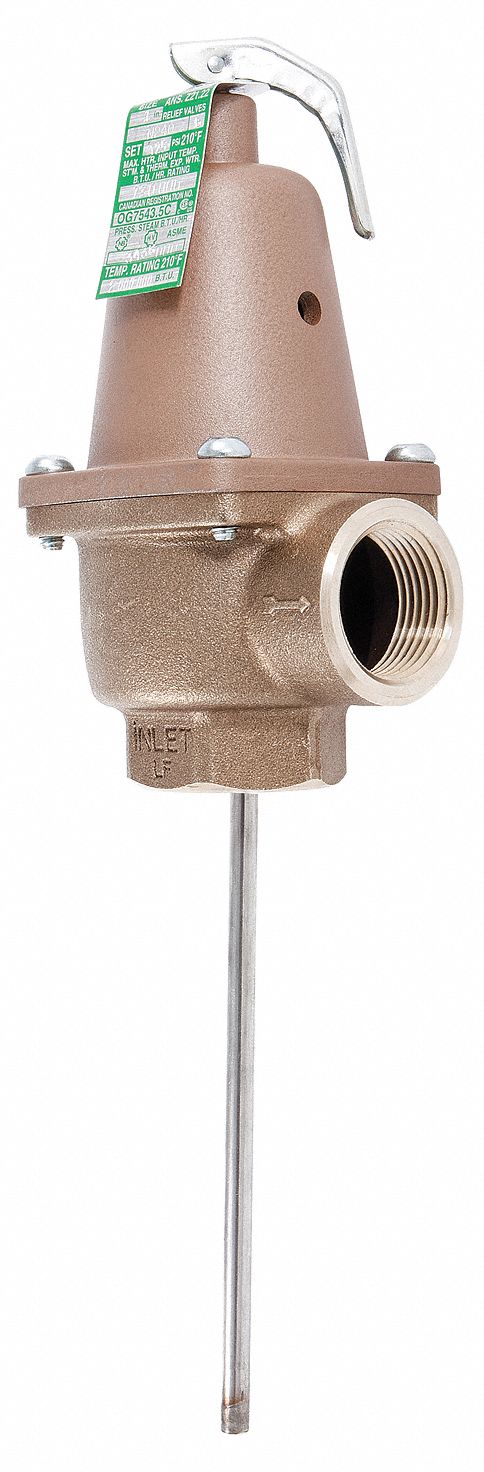

T&P Valves, Max. temp.: 210F,Provide automatic temperature and pressure protection for hot water heaters and supply tanks. Test lever allows pressure checks during operation.,ASME rated, CSA Certified, and meet ANSI Z21.22 standard.,Extended Shank,Use with water heaters containing thick insulation.
| Item | Temperature and Pressure Relief Valve |
| Inlet Type | FNPT |
| Outlet Type | FNPT |
| Inlet Size | 1 in |
| Outlet Size | 1 in |
| Thermostat Length | 6 in |
| Body Height | 6 5/8 in |
| BtuH | 730,000 |
| Factory Set Pressure | 125 psi |
| Max. Temp. | 210 Degrees F |
| Shank Length | Extended |
| Auto Re-Seating | Yes |
| Body Material | Bronze |
| Spring Material | Steel |
| Body Width | 3 3/8 in |
| Standards | ANSI Z21.22, ASME Rated, Design Certified and Listed by CSA Board of B&PVI to Section IV of the ASME B&PV Code FHA Requirements and ANSI Z21.22 in Addition to Military Spec MIL-V |
