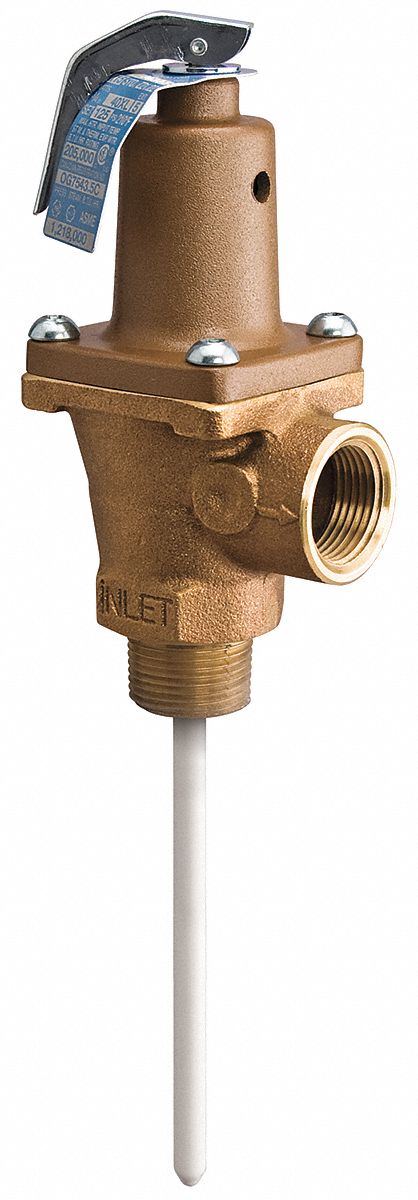

Watts Temperature and Pressure Relief Valve, 205,000 BtuH, 150 psi, 5 in Thermostat Length - 3/4 LF 40XL-5

WattsSKU: C1932177
MPN : 3/4 LF 40XL-5
Weight : 1.57 lb


$235.76 $380.26

Availability : Usually Ships in 7-10 Business Days

T&P Valves, Max. temp.: 210F,Provide automatic temperature and pressure protection for hot water heaters and supply tanks. Test lever allows pressure checks during operation.,ASME rated, CSA Certified, and meet ANSI Z21.22 standard.,Extended Shank,Use with water heaters containing thick insulation.

ItemTemperature and Pressure Relief Valve
Inlet TypeMNPT
Outlet TypeFNPT
Inlet Size3/4 in
Outlet Size3/4 in
Thermostat Length5 in
Body Height5 5/8 in
Factory Set Pressure150 psi
Max. Temp.210 Degrees F
Shank LengthExtended
Auto Re-SeatingYes
Body MaterialLead-Free Brass
Spring MaterialSteel
Body Width2 5/8 in
StandardsFDA, NSF
