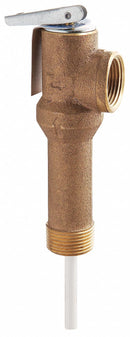

This relief valve provides automatic temperature and pressure protection for hot water heaters and supply tanks. Use it with water heaters containing thick insulation. The test lever allows pressure checks during operation.
| Item | Temperature and Pressure Relief Valve |
| Inlet Type | MNPT |
| Outlet Type | FNPT |
| Inlet Size | 3/4 in |
| Outlet Size | 3/4 in |
| Thermostat Length | 3 in |
| Body Height | 5 1/4 in |
| BtuH | 105,000 |
| Factory Set Pressure | 150 psi |
| Max. Temp. | 210 Degrees F |
| Shank Length | Extended |
| Auto Re-Seating | Yes |
| Body Material | Bronze |
| Spring Material | Steel |
| Body Width | 1 7/8 in |
| Standards | Listed by CSA to the Requirements of ANSI Z21.22, and by the National Board to the Requirements of ASME Section IV |
