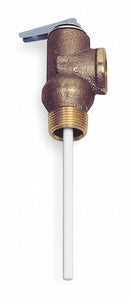

Watts Temperature and Pressure Relief Valve, 105,000 BtuH, 125 psi, 4 in Thermostat Length - 3/4 100XL 125

WattsSKU: C1932174
MPN : 3/4 100XL 125
Weight : 0.55 lb
filler

Price:
$21.51 $26.23

Availability : Usually Ships in 1-3 Business Days

Temperature and Pressure Relief Valve; Inlet Type: MNPT; Outlet Type: FNPT; Inlet Size: 3/4 in; Outlet Size: 3/4 in; Thermostat Length: 4 in; Body Height: 3 1/2 in; BtuH: 105,000; Factory Set Pressure: 125 psi; Max. Temp.: 210 Degrees F; Shank Length: Standard; Auto Re-Seating: Yes; Body Material: Bronze; Spring Material: Stainless Steel; Body Width: 1 3/4 in; Standards: ANSI Z21.22, ASME Rated, CSA

ItemTemperature and Pressure Relief Valve
Inlet TypeMNPT
Outlet TypeFNPT
Inlet Size3/4 in
Outlet Size3/4 in
Thermostat Length4 in
Body Height3 1/2 in
BtuH105,000
Factory Set Pressure125 psi
Max. Temp.210 Degrees F
Shank LengthStandard
Auto Re-SeatingYes
Body MaterialBronze
Spring MaterialStainless Steel
Body Width1 3/4 in
StandardsANSI Z21.22, ASME Rated, CSA
