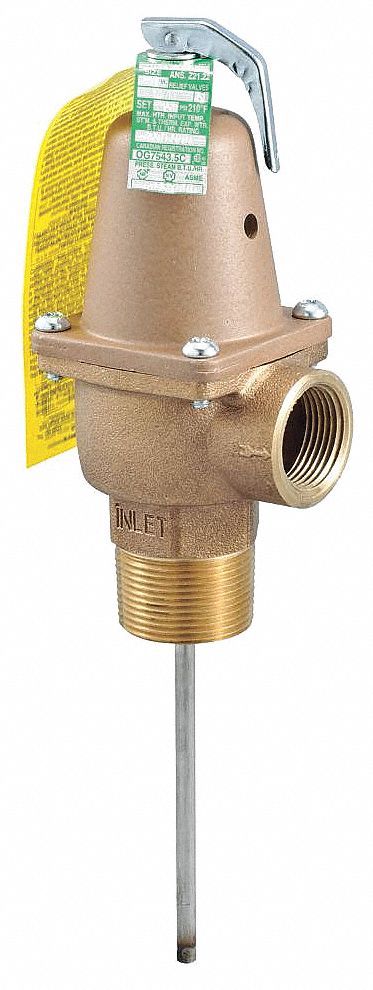

Temperature and Pressure Relief Valve; Inlet Type: MNPT; Outlet Type: FNPT; Inlet Size: 1 1/4 in; Outlet Size: 1 1/4 in; Thermostat Length: 5 in; Body Height: 6 5/8 in; BtuH: 4,059,000; Factory Set Pressure: 150 psi; Max. Temp.: 210 Degrees F; Auto Re-Seating: No; Body Material: Lead Free Copper Silicon Alloy; Body Width: 3 3/8 in; Standards: ANSI Z21.22, ASME, CSA, MIL-V-136-12D
| Item | Temperature and Pressure Relief Valve |
| Inlet Type | MNPT |
| Outlet Type | FNPT |
| Inlet Size | 1 1/4 in |
| Outlet Size | 1 1/4 in |
| Thermostat Length | 5 in |
| Body Height | 6 5/8 in |
| BtuH | 4,059,000 |
| Factory Set Pressure | 150 psi |
| Max. Temp. | 210 Degrees F |
| Auto Re-Seating | No |
| Body Material | Lead Free Copper Silicon Alloy |
| Body Width | 3 3/8 in |
| Standards | ANSI Z21.22, ASME, CSA, MIL-V-136-12D |
