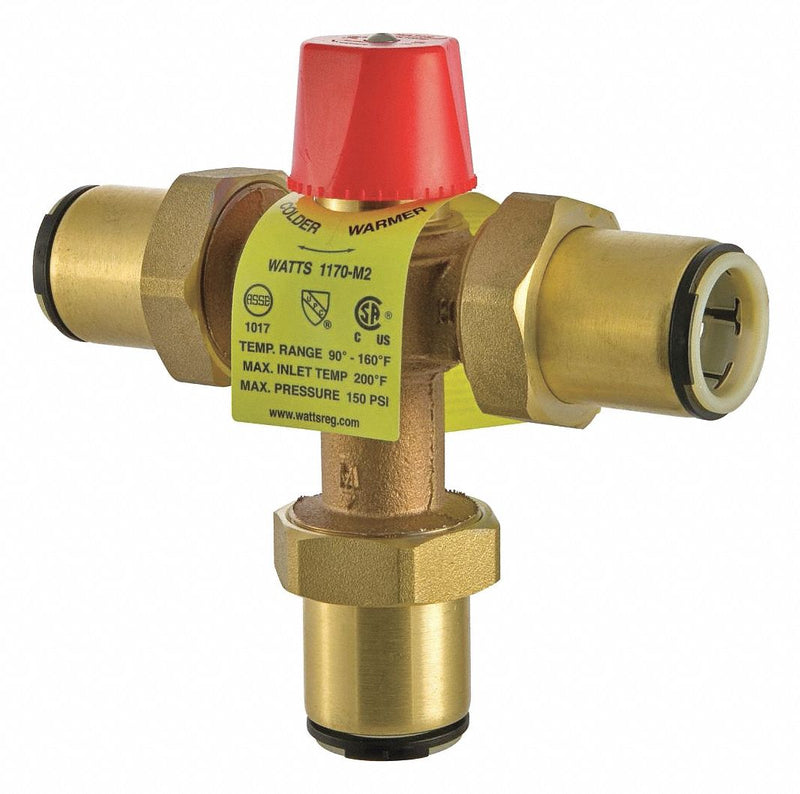

Watts 1 in Quick Connect Inlet Type Thermostatic Mixing Valve, Lead Free Copper Silicon Alloy, 23 gpm - LF1170-M2-QC

WattsSKU: C1946320
MPN : LF1170-M2-QC
Weight : 3.88 lb
filler

Price:
$235.22 $286.85

Availability : Usually Ships in 7-10 Business Days

Thermostatic Mixing Valve; Body Material: Lead Free Copper Silicon Alloy; Flow Rate: 23 gpm; Inlet Type: Quick Connect; Outlet Type: Quick Connect; Inlet Size: 1 in; Outlet Size: 1 in; Temp. Range: 90 Degrees to 160 Degrees F; Max. Pressure: 150 psi; Overall Height: 6 1/2 in; Overall Width: 7 1/8 in; Inlet Temperature (Cold): 40 Degrees to 85 Degrees F; Inlet Temperature (Hot): 120 Degrees to 200 Degrees F; For Use With: Domestic Hot Water Applications; Standards: ASSE 1017

ItemThermostatic Mixing Valve
Body MaterialLead Free Copper Silicon Alloy
Flow Rate23 gpm
Inlet TypeQuick Connect
Outlet TypeQuick Connect
Inlet Size1 in
Outlet Size1 in
Temp. Range90 Degrees to 160 Degrees F
Max. Pressure150 psi
Overall Height6 1/2 in
Overall Width7 1/8 in
Inlet Temperature (Cold)40 Degrees to 85 Degrees F
Inlet Temperature (Hot)120 Degrees to 200 Degrees F
For Use WithDomestic Hot Water Applications
StandardsASSE 1017
