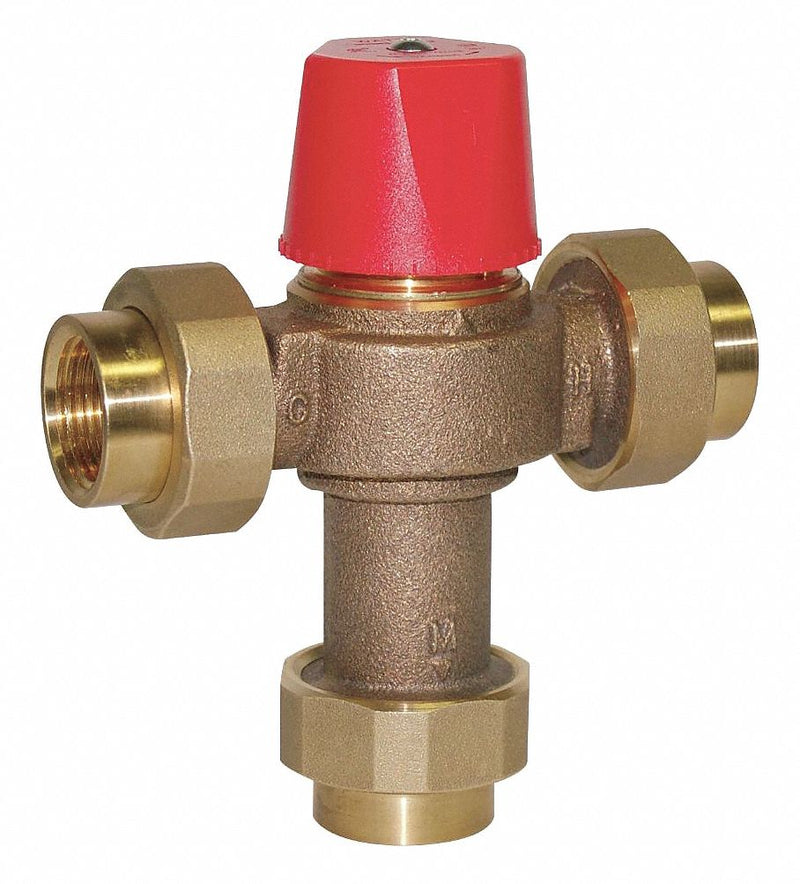

Watts 1 in Union Inlet Type Thermostatic Mixing Valve, Lead Free Copper Silicon Alloy, 23 gpm - LF1170-M2-UT

WattsSKU: C1931535
MPN : LF1170-M2-UT
Weight : 3.1 lb


$292.71 $356.96

Availability : Usually Ships in 7-10 Business Days

Thermostatic Mixing Valve; Body Material: Lead Free Copper Silicon Alloy; Flow Rate: 23 gpm; Inlet Type: Union; Outlet Type: Threaded; Inlet Size: 1 in; Outlet Size: 1 in; Temp. Range: 90 Degrees to 160 Degrees F; Max. Pressure: 150 psi; Overall Height: 5 5/8 in; Overall Width: 5 13/16 in; Inlet Temperature (Cold): 40 Degrees to 85 Degrees F; Inlet Temperature (Hot): 120 Degrees to 200 Degrees F; For Use With: Domestic Hot Water Applications; Standards: ASSE 1017

ItemThermostatic Mixing Valve
Body MaterialLead Free Copper Silicon Alloy
Flow Rate23 gpm
Inlet TypeUnion
Outlet TypeThreaded
Inlet Size1 in
Outlet Size1 in
Temp. Range90 Degrees to 160 Degrees F
Max. Pressure150 psi
Overall Height5 5/8 in
Overall Width5 13/16 in
Inlet Temperature (Cold)40 Degrees to 85 Degrees F
Inlet Temperature (Hot)120 Degrees to 200 Degrees F
For Use WithDomestic Hot Water Applications
StandardsASSE 1017
