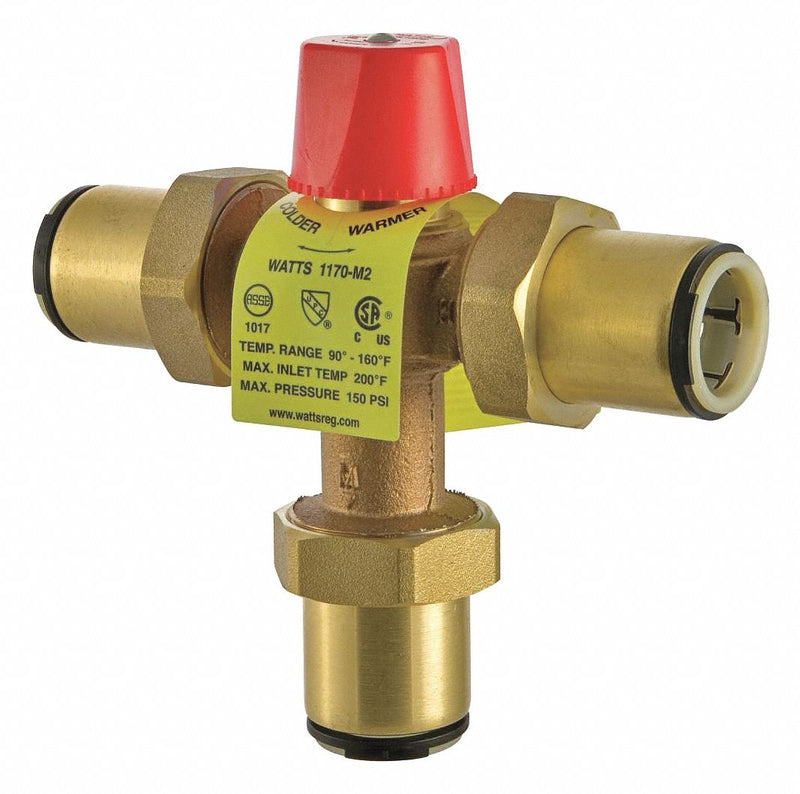

Watts 3/4 in Quick Connect Inlet Type Thermostatic Mixing Valve, Lead Free Copper Silicon Alloy, 23 gpm - LF1170-M2-QC

WattsSKU: C1931536
MPN : LF1170-M2-QC
Weight : 3.0 lb


$132.95 $214.44

Availability : Usually Ships in 15 Business Days

Thermostatic Mixing Valve; Body Material: Lead Free Copper Silicon Alloy; Flow Rate: 23 gpm; Inlet Type: Quick Connect; Outlet Type: Quick Connect; Inlet Size: 3/4 in; Outlet Size: 3/4 in; Temp. Range: 90 Degrees to 160 Degrees F; Max. Pressure: 150 psi; Overall Height: 6 7/16 in; Overall Width: 6 15/16 in; Inlet Temperature (Cold): 40 Degrees to 85 Degrees F; Inlet Temperature (Hot): 120 Degrees to 200 Degrees F; For Use With: Domestic Hot Water Applications; Standards: ASSE 1017

ItemThermostatic Mixing Valve
Body MaterialLead Free Copper Silicon Alloy
Flow Rate23 gpm
Inlet TypeQuick Connect
Outlet TypeQuick Connect
Inlet Size3/4 in
Outlet Size3/4 in
Temp. Range90 Degrees to 160 Degrees F
Max. Pressure150 psi
Overall Height6 7/16 in
Overall Width6 15/16 in
Inlet Temperature (Cold)40 Degrees to 85 Degrees F
Inlet Temperature (Hot)120 Degrees to 200 Degrees F
For Use WithDomestic Hot Water Applications
StandardsASSE 1017
