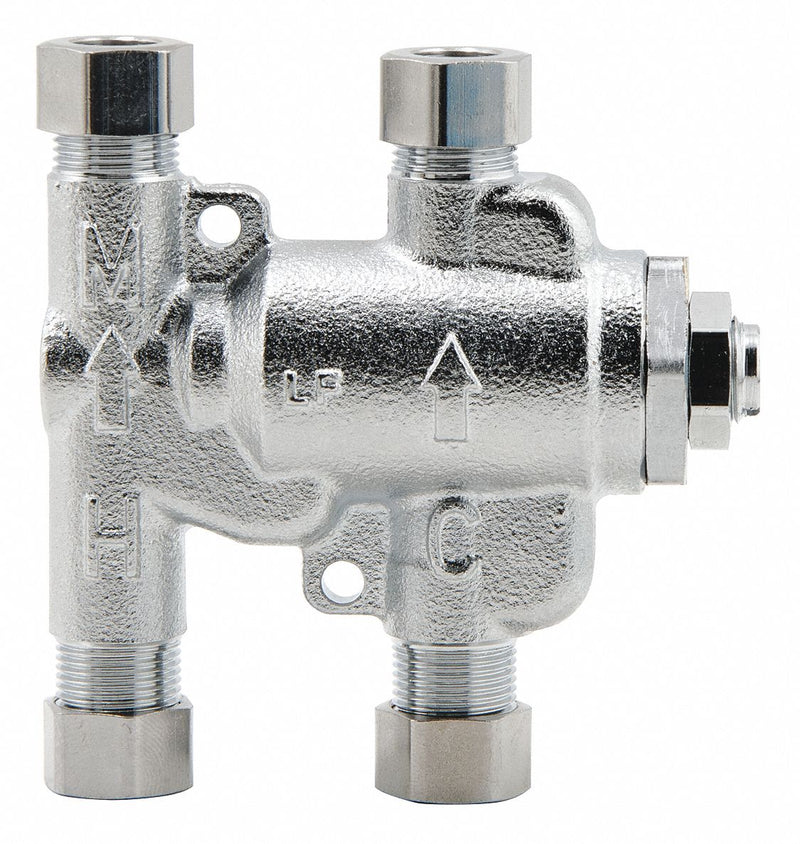

Watts 3/8 in Compression Inlet Type Thermostatic Mixing Valve, Lead Free Copper Silicon Alloy, 2.25 gpm - LFUSGB-M2-SC

WattsSKU: C1946311
MPN : LFUSGB-M2-SC
Weight : 0.89 lb
filler

Price:
$291.06 $354.95

Availability : Usually Ships in 7-10 Business Days

Thermostatic Mixing Valve; Body Material: Lead Free Copper Silicon Alloy; Flow Rate: 2.25 gpm; Inlet Type: Compression; Outlet Type: Compression; Inlet Size: 3/8 in; Outlet Size: 3/8 in; Temp. Range: 80 Degrees to 120 Degrees F; Max. Pressure: 150 psi; Overall Height: 3 3/8 in; Overall Width: 3 3/16 in; Inlet Temperature (Cold): 39 Degrees to 80 Degrees F; Inlet Temperature (Hot): 120 Degrees to 180 Degrees F; For Use With: Domestic Hot Water Applications; Standards: ASSE 1070

ItemThermostatic Mixing Valve
Body MaterialLead Free Copper Silicon Alloy
Flow Rate2.25 gpm
Inlet TypeCompression
Outlet TypeCompression
Inlet Size3/8 in
Outlet Size3/8 in
Temp. Range80 Degrees to 120 Degrees F
Max. Pressure150 psi
Overall Height3 3/8 in
Overall Width3 3/16 in
Inlet Temperature (Cold)39 Degrees to 80 Degrees F
Inlet Temperature (Hot)120 Degrees to 180 Degrees F
For Use WithDomestic Hot Water Applications
StandardsASSE 1070
