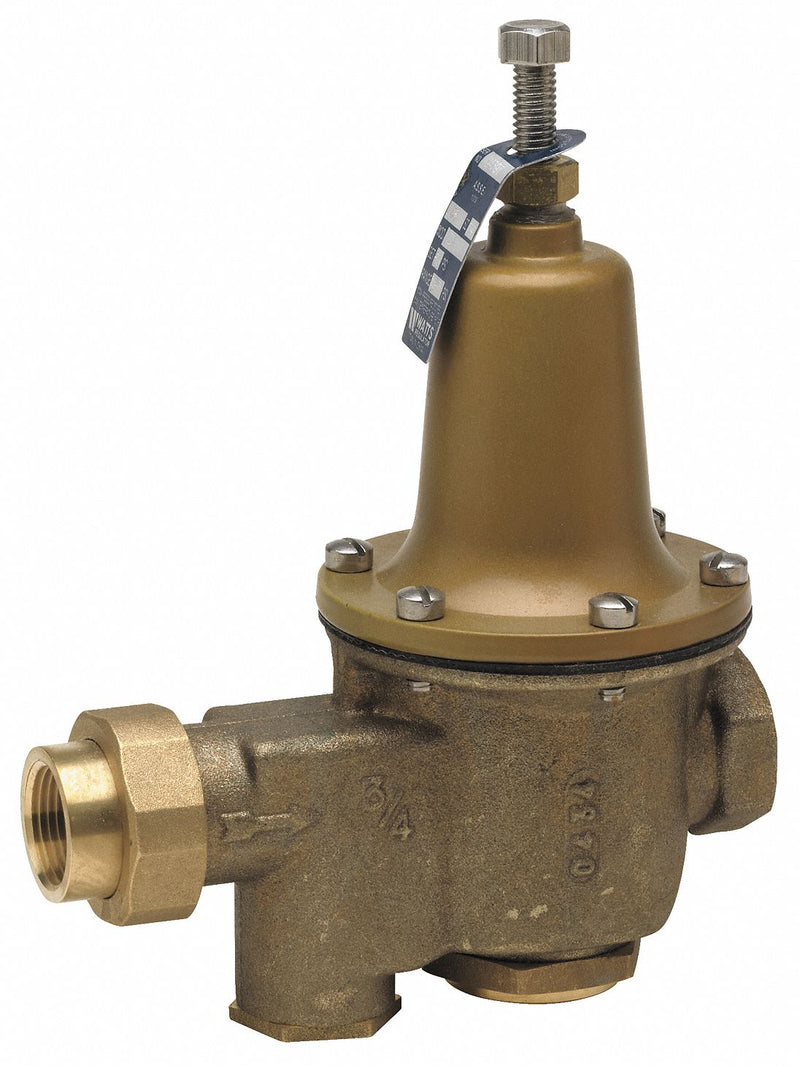

Watts Water Pressure Reducing Valve, High Capacity Valve Type, Lead Free Brass, 3/4 in Pipe Size - 3/4 LF U5BZ3

WattsSKU: C1932336
MPN : 3/4 LF U5BZ3
Weight : 4.86 lb
filler

Price:
$445.65 $543.48

Availability : Usually Ships in 1-3 Business Days

Water Pressure Reducing Valve; Valve Type: High Capacity; Strainer: Yes; Material: Lead Free Brass; Pipe Size: 3/4 in; Preset Pressure Settings: 50 psi; Pressure Adjustment Range: 25 to 75 psi; Connection Type: FNPT Union x FNPT; Height: 6 7/8 in; Length: 6 1/4 in; Max. Temp.: 160 Degrees F; Max. Pressure: 300 psi; Standards: ANSI A112.262, ASSE 1003, CSA B356, IAPMO, Southern Standard Plumbing Code

ItemWater Pressure Reducing Valve
Valve TypeHigh Capacity
StrainerYes
MaterialLead Free Brass
Pipe Size3/4 in
Preset Pressure Settings50 psi
Pressure Adjustment Range25 to 75 psi
Connection TypeFNPT Union x FNPT
Height6 7/8 in
Length6 1/4 in
Max. Temp.160 Degrees F
Max. Pressure300 psi
StandardsANSI A112.262, ASSE 1003, CSA B356, IAPMO, Southern Standard Plumbing Code
