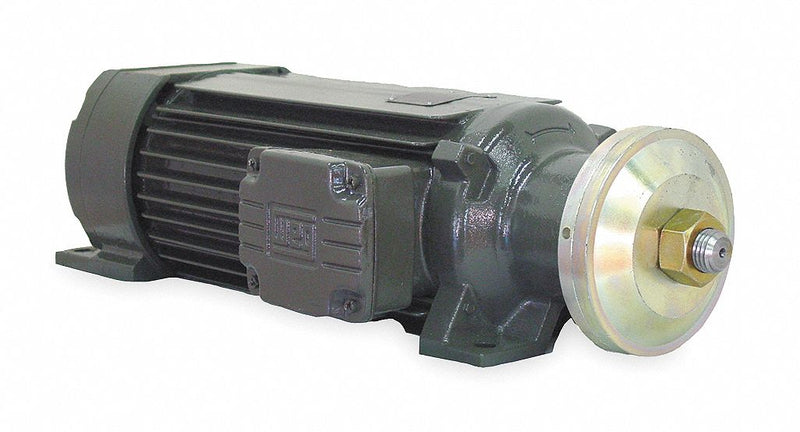

| Item | Saw Arbor Motor |
| Motor Application | Power Tool |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 7 1/2 |
| Nameplate RPM | 1720 |
| Frame | 90L |
| Voltage | 208-230/460 |
| Hz | 60 |
| Phase | 3 |
| Full Load Amps | 22.4-20.3/10.1 |
| Motor Mounting Type | Rigid Base |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Ambient Temperature | 40 Degrees C |
| Motor Shaft Rotation | CWSE |
| Length Less Shaft | 24 in |
| Shaft Dia. | 30 mm |
| Shaft Length | 2 1/2 in |
| Standards | CE, CSA Certified (LR50.962-9/13/14), UL Recognized (E104590) |
| Includes | PG Threaded Terminal Box |
| RPM Range | 1701-1800 |
| Voltage Compatibility | 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460 |
