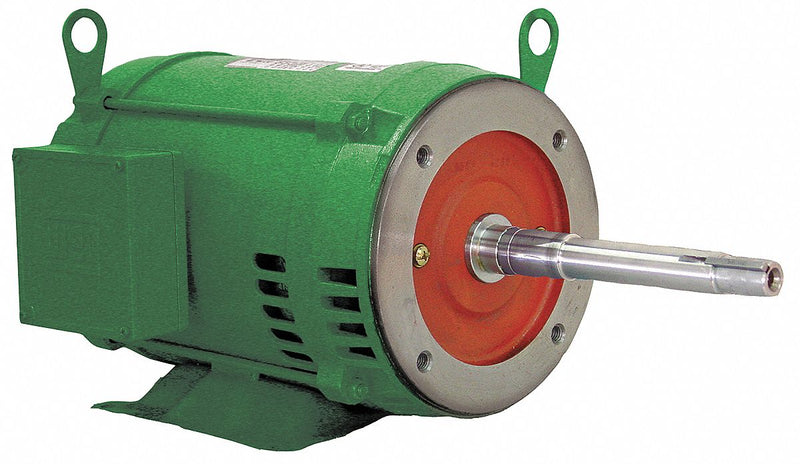

| Item | Close-Coupled Pump Motor |
| Motor Application | Pump |
| Motor Sub Application | Close-Coupled Pump |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| HP | 30 |
| Nameplate RPM | 1770 |
| Frame | 286JP |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 208-230/460 |
| Full Load Amps | 63.7-70.8/35.4 |
| Phase | 3 |
| Hz | 60 |
| Motor Mounting Type | Face/Base |
| Motor Bearings | Ball |
| Motor Frame Material | Cast Iron |
| Motor Thermal Protection | None |
| Motor Service Factor | 1.15 |
| Max. Ambient Temp. | 40 Degrees C |
| Shaft Dia. | 1 1/4 in |
| Shaft Length | 8 1/8 in |
| Motor Shaft Design | JP Threaded |
| Length Less Shaft | 20 1/2 in |
| Overall Length | 28 5/8 in |
| Ins. Class | F |
| Duty | Continuous |
| Nominal Efficiency | 94.1 % |
| CC Number | CC029A |
| Motor Efficiency Group | NEMA Premium Efficient |
| Inverter Rated | Yes |
| Standards | CE Compliant, CSA Certified, UL Recognized |
| Voltage Compatibility | 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460 |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Green Certification or Other Recognition | NEMA Premium(R) Rat |
