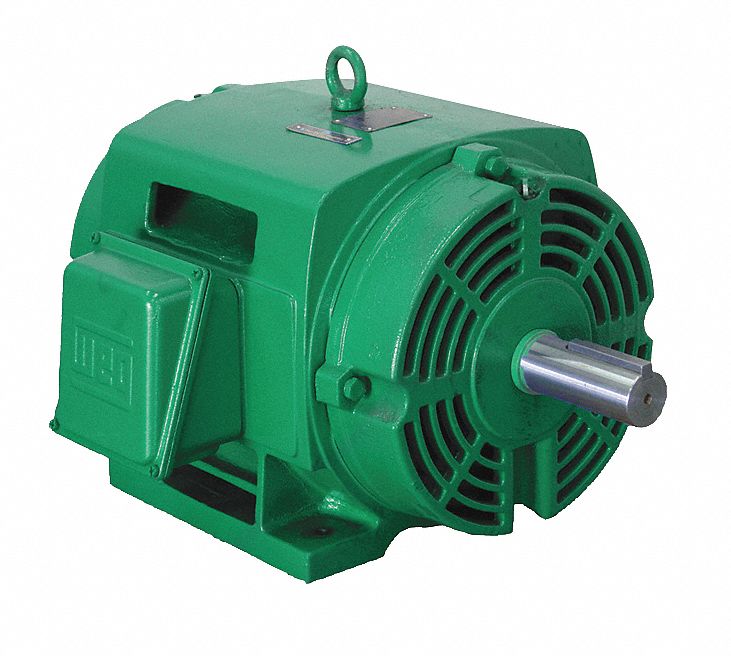

WEG 40 HP, General Purpose Motor, 3-Phase, 1775 Nameplate RPM, 230/460 Voltage, 324T Frame - 04018OT3E324T-W40

WEGSKU: C2848537
MPN : 04018OT3E324T-W40
Weight : 574.0 lb
filler

Price:
$3,000.65 $3,659.33

Availability : Usually Ships in 1-3 Business Days

Featuring a corrosion-resistant finish, this motor is suitable for clean, dry, nonhazardous applications with pumps, ventilation equipment, machine tools, and other industrial equipment. The gasketed conduit box is threaded for easier installation. The stainless steel, laser-etched nameplate maintains information over long life.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
HP40
Nameplate RPM1775
Frame324T
Voltage230/460
Hz60
Phase3
Full Load Amps96.4/48.2
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialCast Iron
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.2 1/8 in
Shaft Length5 1/4 in
Length Less Shaft20 15/16 in
Overall Length26 3/16 in
Motor Shaft DesignKeyed
StandardsCE, CSA, UL
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency94.1 %
CC NumberCC029A
Inverter RatedYes
Manufacturers Warranty Length3 yr
Green Environmental AttributeProduct Contributes To Reducing Energy Consumption
Green Certification or Other RecognitionNEMA Premium(R) Rated
