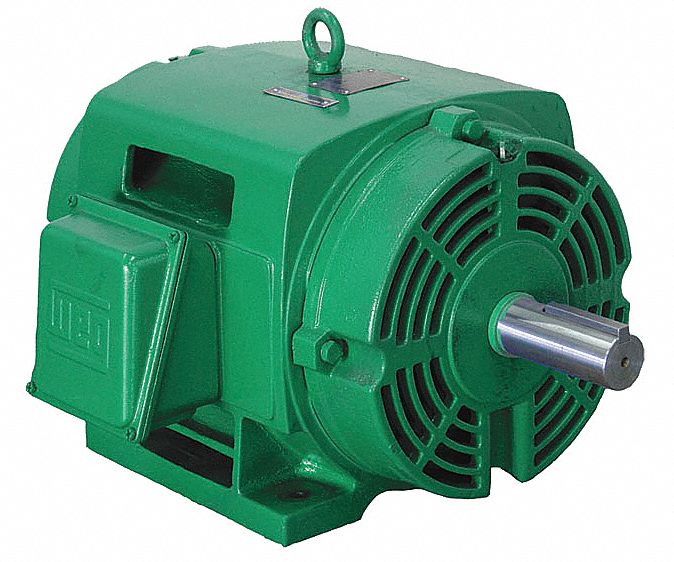

WEG 50 HP, General Purpose Motor, 3-Phase, 3555 Nameplate RPM, 575 Voltage, 324TS Frame - 05036OT3H324TS

WEGSKU: C2848540
MPN : 05036OT3H324TS
Weight : 500.0 lb

filler

Price:
$3,422.42 $5,520.03

Availability : Usually Ships in 5-7 Business Days

General Purpose Motor; Motor Application: General Application; Motor Design: 3-Phase; Motor Enclosure Design: Open Dripproof; HP: 50; Nameplate RPM: 3555; Frame: 324TS; Voltage: 575; Hz: 60; Phase: 3; Full Load Amps: 47.3; No. of Speeds: 1; Motor Mounting Type: Rigid Base; Motor Mounting Position: Horizontal; Motor Thermal Protection: None; Ins. Class: F; Motor Service Factor: 1.15; Motor Bearings: Ball; Motor Frame Material: Cast Iron; Max. Ambient Temp.: 40 Degrees C; Motor Shaft Rotation: CW/CCW; Shaft Dia.: 1 7/8 in; Shaft Length: 3 3/4 in; Length Less Shaft: 20 15/16 in; Overall Length: 24 11/16 in; Motor Shaft Design: Keyed; Standards: CE, CSA, UL; Duty: Continuous; Motor Efficiency Group: NEMA Premium Efficient; Nominal Efficiency: 93.6 %; CC Number: CC029A; Manufacturers Warranty Length: 3 yr; Green Environmental Attribute: Product Contributes To Reducing Energy Consumption; Green Certification or Other Recognition: NEMA Premium(R) Rated

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
HP50
Nameplate RPM3555
Frame324TS
Voltage575
Hz60
Phase3
Full Load Amps47.3
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialCast Iron
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.1 7/8 in
Shaft Length3 3/4 in
Length Less Shaft20 15/16 in
Overall Length24 11/16 in
Motor Shaft DesignKeyed
StandardsCE, CSA, UL
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency93.6 %
CC NumberCC029A
Manufacturers Warranty Length3 yr
Green Environmental AttributeProduct Contributes To Reducing Energy Consumption
Green Certification or Other RecognitionNEMA Premium(R) Rated
